F3SG-R Arkusz danych(PDF) 59 Page - Omron Electronics LLC

Numer części F3SG-R
Szczegółowy opis  Safety Light Curtain
PDF  164 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Producent  OMRON [Omron Electronics LLC]
Strona internetowa  http://www.omron.com/index3.html
Logo OMRON - Omron Electronics LLC

F3SG-R Arkusz danych(HTML) 59 Page - Omron Electronics LLC

Back Button F3SG-R Datasheet HTML 55Page - Omron Electronics LLC F3SG-R Datasheet HTML 56Page - Omron Electronics LLC F3SG-R Datasheet HTML 57Page - Omron Electronics LLC F3SG-R Datasheet HTML 58Page - Omron Electronics LLC F3SG-R Datasheet HTML 59Page - Omron Electronics LLC F3SG-R Datasheet HTML 60Page - Omron Electronics LLC F3SG-R Datasheet HTML 61Page - Omron Electronics LLC F3SG-R Datasheet HTML 62Page - Omron Electronics LLC F3SG-R Datasheet HTML 63Page - Omron Electronics LLC Next Button
Zoom Inzoom in Zoom Outzoom out
 59 / 164 page
background image

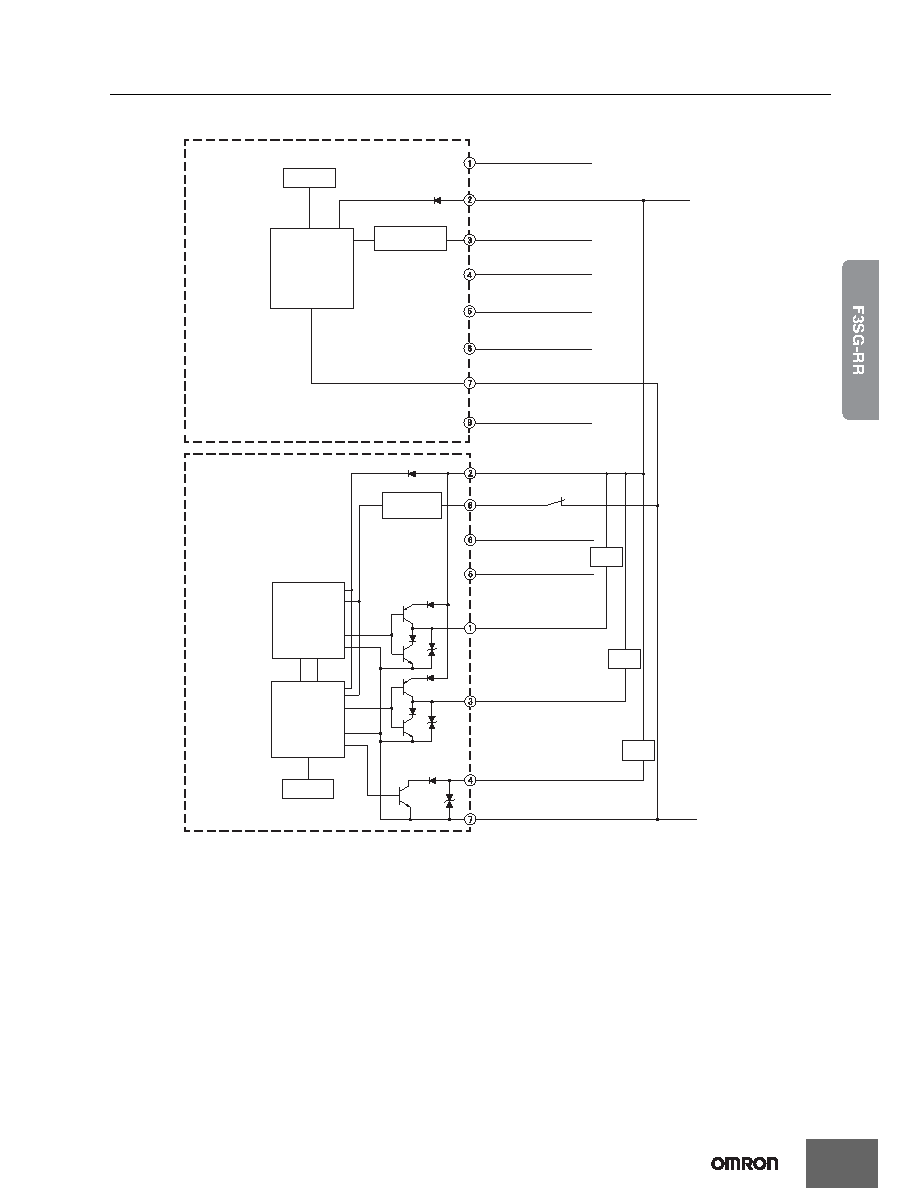

F3SG-RR
59
NPN Output
Brown
Red
White OSSD 2
Pink
Gray
Black
OSSD 1
Yellow
AUX
Blue
EDM
circuit
RESET/EDM
MUTE B /
PC COM (-) *
MUTE A /
PC COM (+) *
0 VDC
Receiver
Main Circuit 2
Receiver
Main Circuit 1
Indicator
Load
Load
Load
+24 VDC
Brown
Black
TEST
Yellow
Not used
White
Not used
Blue
Gray Not used
Pink
Not used
Red Not used
Indicator
Emitter
Main Circuit
Test Input
Circuit
* This line is used for communication with a PC using the F39-GIF-1 Interface Unit.
