F3SG-RA

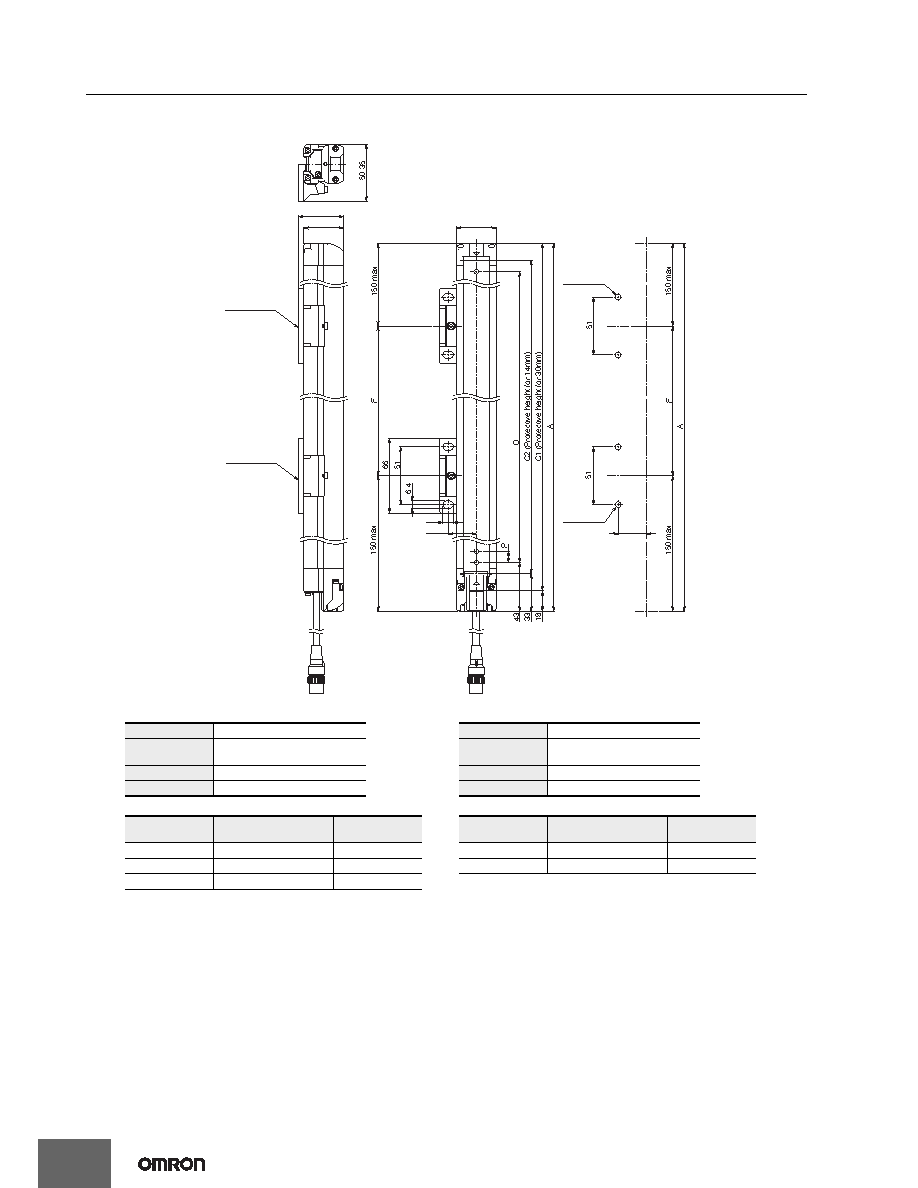

Dimensions

(Unit: mm)

Mounted with Standard Fixed Brackets (F39-LGF)

Backside Mounting

*1. The number of brackets required to mount either one of emitter and receiver.

*2. Mounting an emitter or receiver with one bracket is possible for the models of protective height of 0160 to 0270. In this case, locate this bracket

at half the Dimension A (or at the center of the sensor length).

2-M5 or M6

9.2

Standard

Fixed Bracket

(F39-LGF)

Standard

Fixed Bracket

(F39-LGF)

24.85

< Screw: M5 or M6 >

F3SG-RA-30 Series

Dimension A

C1+18

Dimension C1

4-digit number of the type name

(Protective height)

Dimension D

C1-50

Dimension P

Protective height

(C1)

Number of Standard

Fixed Brackets *1

Dimension F

0190 to 1230

2 *2

1000 mm max.

1310 to 2270

1000 mm max.

2350 to 2510

1000 mm max.

F3SG-RA-14 Series

Dimension A

C2+48

Dimension C2

4-digit number of the type name

(Protective height)

Dimension D

C2-20

Dimension P

Protective height

(C2)

Number of Standard

Fixed Brackets *1

Dimension F

0160 to 1200

2 *2

1000 mm max.

1280 to 2080

1000 mm max.
