F3SG-R datasheet(96/164 Pages) OMRON

96 / 164 page

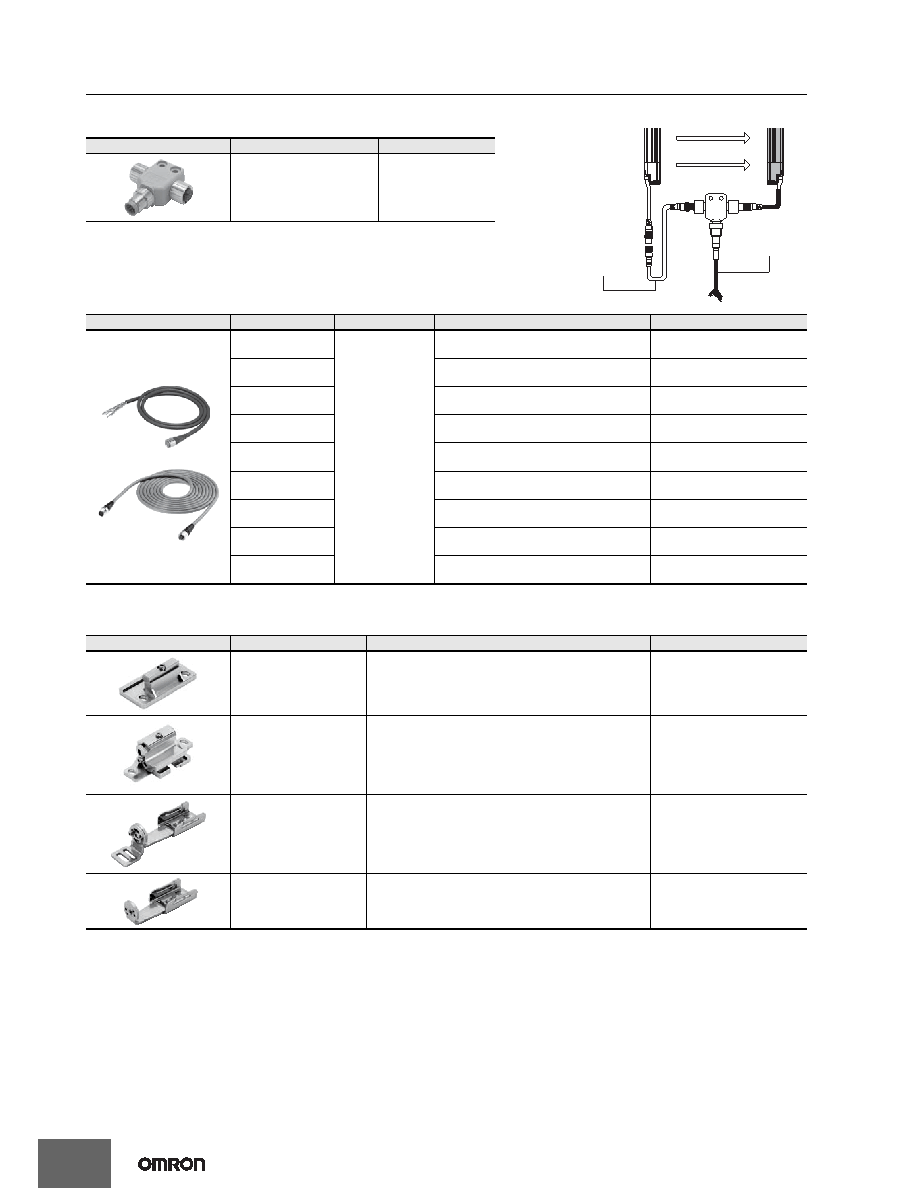

F3SG-RA-01TS

Reduced Wiring Connector System (Order the F39-CN5 and Cables for Reduce Wiring.)

Reduced Wiring Connector

Note: When using the Reduced Wiring Connector (F39-CN5), the following functions are not

available.

- External Device Monitoring

- Auxiliary Output

Cable for Reduce Wiring* (2 cables per set, one for emitter and one for receiver)

Note: A combination of emitter and receiver cables of other lengths than the above is also available. For details, contact your Omron representative.

* Double-Ended Cable for emitter and Single-Ended Cable for receiver.

Sensor Mounting Brackets

*1. Protective height of 0185 to 1225: 2 sets, Protective height of 1305 to 1945: 3 sets

*2. Top/Bottom Adjustable Bracket cannot be used with the Standard Fixed Bracket. Use with the Standard Adjustable Bracket.

Using Top/Bottom Adjustable Brackets with Standard Adjustable Brackets

Protective height of 1065 or less: The Standard Adjustable Bracket is not required. Please purchase 1 set of Top/Bottom Adjustable Brackets

(F39-LGTB(-1)).

Protective height of 1145 to 1945: Please purchase 1 set of Top/Bottom Adjustable Brackets (F39-LGTB(-1)) and 1 set of Standard Adjustable

Brackets (F39-LGA).

Appearance

Specifications

Model

IP67 rated when mated.

F39-CN5

Appearance

Cable length

Specifications

Remarks

Model

Emitter: 3 m

Receiver: 3 m

IP67 rated

when mated.

Double-Ended Cable: F39-JD3B-L

Single-Ended Cable: F39-JD3A-D

F39-JD0303BA

Emitter: 3 m

Receiver: 7 m

Double-Ended Cable: F39-JD3B-L

Single-Ended Cable: F39-JD7A-D

F39-JD0307BA

Emitter: 3 m

Receiver: 10 m

Double-Ended Cable: F39-JD3B-L

Single-Ended Cable: F39-JD10A-D

F39-JD0310BA

Emitter: 5 m

Receiver: 3 m

Double-Ended Cable: F39-JD5B-L

Single-Ended Cable: F39-JD3A-D

F39-JD0503BA

Emitter: 5 m

Receiver: 7 m

Double-Ended Cable: F39-JD5B-L

Single-Ended Cable: F39-JD7A-D

F39-JD0507BA

Emitter: 5 m

Receive: 10mr

Double-Ended Cable: F39-JD5B-L

Single-Ended Cable: F39-JD10A-D

F39-JD0510BA

Emitter: 10 m

Receiver: 3 m

Double-Ended Cable: F39-JD10B-L

Single-Ended Cable: F39-JD3A-D

F39-JD1003BA

Emitter: 10 m

Receiver: 7 m

Double-Ended Cable: F39-JD10B-L

Single-Ended Cable: F39-JD7A-D

F39-JD1007BA

Emitter: 10 m

Receiver: 10 m

Double-Ended Cable: F39-JD10B-L

Single-Ended Cable: F39-JD10A-D

F39-JD1010BA

Appearance

Specification

Application

Model

Standard Fixed

Bracket

Bracket to mount the F3SG-RA-01TS.

Side mounting and backside mounting possible.

(Sold separately as a set of two Brackets. Refer to note

*1 for the number of sets required for each model.)

F39-LGF

Standard

Adjustable

Bracket

Bracket to mount the F3SG-RA-01TS.

Beam alignment after mounting possible.

The angle adjustment range is

±15°.

Side mounting and backside mounting possible.

(Sold separately as a set of two Brackets. Refer to note

*1 for the number of sets required for each model.)

F39-LGA

Top/Bottom

Adjustable Bracket *2

Bracket to mount the F3SG-RA-01TS. Use this bracket

at the top and bottom positions of the F3SG-RA-01TS.

Beam alignment after mounting possible.

The angle adjustment range is

±22.5°.

Side mounting and backside mounting possible.

(Sold separately. 4 brackets per set.)

F39-LGTB

Top/Bottom

Adjustable Bracket *2

(For user-made mounting

part)

Top/Bottom Adjustable Bracket without a bracket to

mount to the wall. Use the user's own wall mounting part

to suit the machine.

(Sold separately. 4 brackets per set.)

F39-LGTB-1

F3SG-RA-01TS

Emitter

F3SG-RA-01TS

Receiver

F39-CN5

Reduced Wiring Connector

F39-JD

@A-D

Single-Ended

Cable (Black)

F39-JD

@-B-L

Double-Ended

Cable (Gray)
