F3SG-R Arkusz danych(PDF) 60 Page - Omron Electronics LLC

Numer części F3SG-R
Szczegółowy opis  Safety Light Curtain
PDF  164 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Producent  OMRON [Omron Electronics LLC]
Strona internetowa  http://www.omron.com/index3.html
Logo OMRON - Omron Electronics LLC

F3SG-R Arkusz danych(HTML) 60 Page - Omron Electronics LLC

Back Button F3SG-R Datasheet HTML 56Page - Omron Electronics LLC F3SG-R Datasheet HTML 57Page - Omron Electronics LLC F3SG-R Datasheet HTML 58Page - Omron Electronics LLC F3SG-R Datasheet HTML 59Page - Omron Electronics LLC F3SG-R Datasheet HTML 60Page - Omron Electronics LLC F3SG-R Datasheet HTML 61Page - Omron Electronics LLC F3SG-R Datasheet HTML 62Page - Omron Electronics LLC F3SG-R Datasheet HTML 63Page - Omron Electronics LLC F3SG-R Datasheet HTML 64Page - Omron Electronics LLC Next Button
Zoom Inzoom in Zoom Outzoom out
 60 / 164 page
background image
F3SG-RR
60

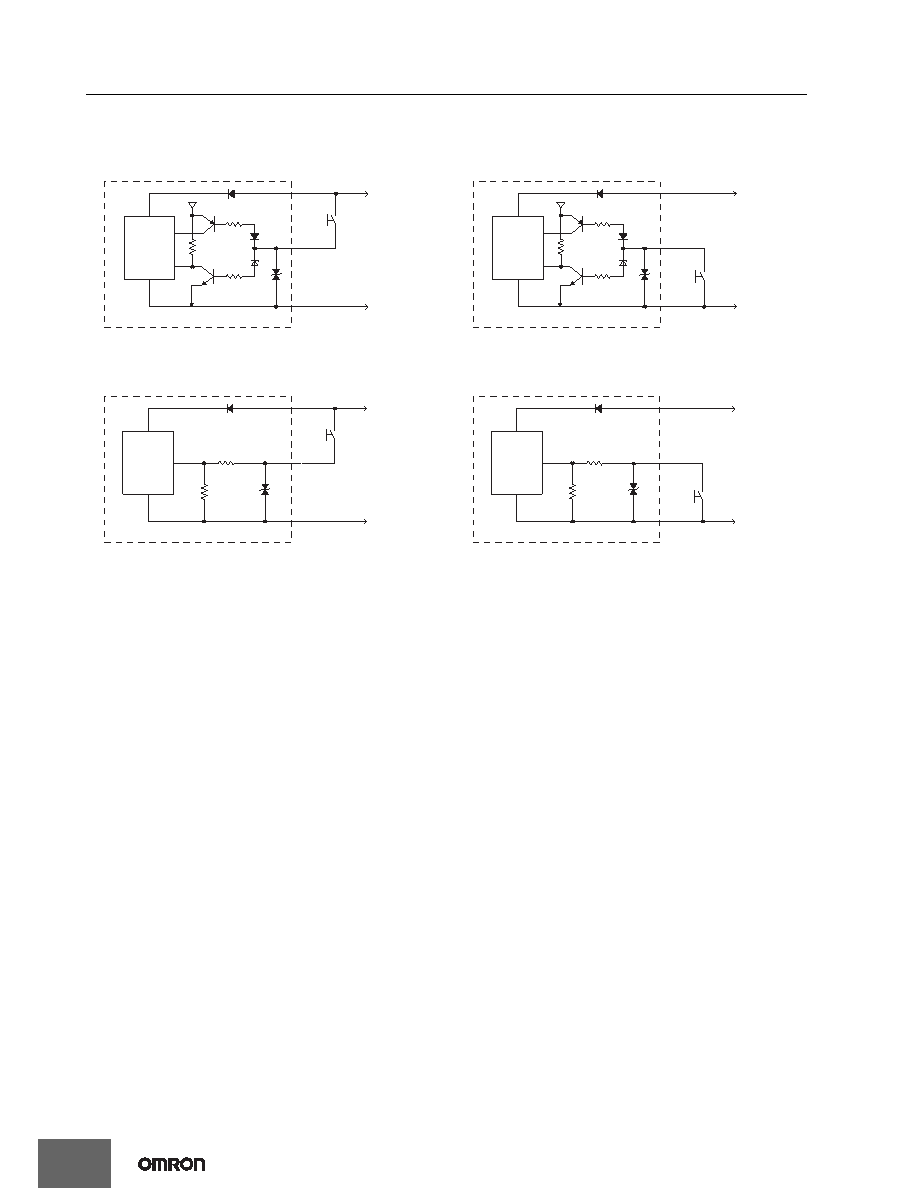

Input Circuit Diagram by Function
The input circuit diagrams of by function are shown below.
Emitter
Main
Circuit
+24 VDC
0 VDC
5 V
Short circuit current:
Approx. 2.5 mA
<24 V Active>
<0 V Active>
Emitter
Main
Circuit
+24 VDC
0 VDC
5 V
Short circuit current:
Approx. 2.0 mA
Test Input
Receiver
Main
Circuit
+24 VDC
0 VDC
Short circuit current:
Approx. 8 mA
<NPN Output>
<PNP Output>
Receiver
Main
Circuit
+24 VDC
0 VDC
Short circuit current:
Approx. 6.5 mA
Reset/EDM
