F3SG-RE

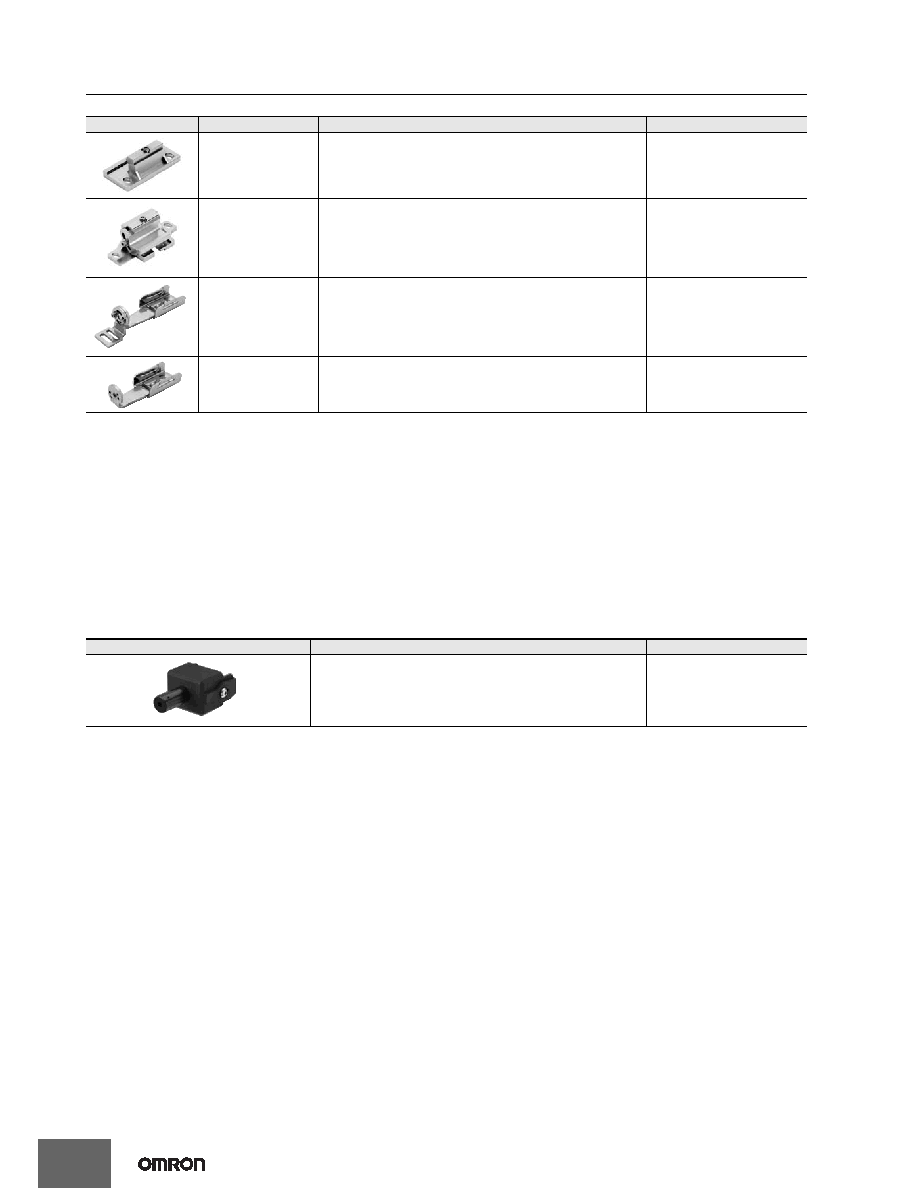

Sensor Mounting Brackets

*1. [for F3SG-4RE

@@@@@14] Protective height of 0160 to 1200: 2 sets, Protective height of 1280 to 2080: 3 sets

[for F3SG-4RE

@@@@@30] Protective height of 0190 to 1230: 2 sets, Protective height of 1310 to 2270: 3 sets, Protective height of 2350 to 2510: 4 sets

*2. Top/Bottom Adjustable Bracket cannot be used with the Standard Fixed Bracket. Use with the Standard Adjustable Bracket.

Using Top/Bottom Adjustable Brackets with Standard Adjustable Brackets

F3SG-4RE

@@@@@14: Protective height of 1040 or less: The Standard Adjustable Bracket is not required. Please purchase 1 set of Top/Bottom Adjustable

Brackets (F39-LGTB(-1)).

Protective height of 1120 to 1920: Please purchase 1 set of Top/Bottom Adjustable Brackets (F39-LGTB(-1)) and 1 set of Standard

Adjustable Brackets (F39-LGA).

Protective height of 2000 to 2080: Please purchase 1 set of Top/Bottom Adjustable Brackets (F39-LGTB(-1)) and 2 sets of Standard

Adjustable Brackets (F39-LGA).

F3SG-4RE

@@@@@30: Protective height of 1070 or less: The Standard Adjustable Bracket is not required. Please purchase 1 set of Top/Bottom Adjustable

Brackets (F39-LGTB(-1)).

Protective height of 1150 to 1950: Please purchase 1 set of Top/Bottom Adjustable Brackets (F39-LGTB(-1)) and 1 set of Standard

Adjustable Brackets (F39-LGA).

Protective height of 2030 to 2510: Please purchase 1 set of Top/Bottom Adjustable Brackets (F39-LGTB(-1)) and 2 sets of Standard

Adjustable Brackets (F39-LGA).

Laser Pointer for F3SG-R

Appearance

Specification

Application

Model

Standard

Fixed Bracket

Bracket to mount the F3SG-R.

Side mounting and backside mounting possible.

(This is included as a standard accessory with the product. It

comes as a set of two Brackets. Refer to note *1 for the number

of sets provided with each model.)

F39-LGF

Standard

Adjustable Bracket

Bracket to mount the F3SG-R.

Beam alignment after mounting possible.

The angle adjustment range is

±15°.

Side mounting and backside mounting possible.

(Sold separately as a set of two Brackets. Refer to note *1 for the

number of sets required for each model.)

F39-LGA

Top/Bottom

Adjustable Bracket *2

Bracket to mount the F3SG-R. Use this bracket at the top and

bottom positions of the F3SG-R.

Beam alignment after mounting possible.

The angle adjustment range is

±22.5°.

Side mounting and backside mounting possible.

(Sold separately. 4 brackets per set.)

F39-LGTB

Top/Bottom

Adjustable Bracket *2

(For user-made

mounting part)

Top/Bottom Adjustable Bracket without a bracket to mount to the

wall. Use the user's own wall mounting part to suit the machine.

(Sold separately. 4 brackets per set.)

F39-LGTB-1

Appearance

Specifications

Model

The laser pointer is attached on the optical surface of the F3SG-R

to help coarse adjustment of beams.

F39-PTG
