Minimizing setting and detection errors

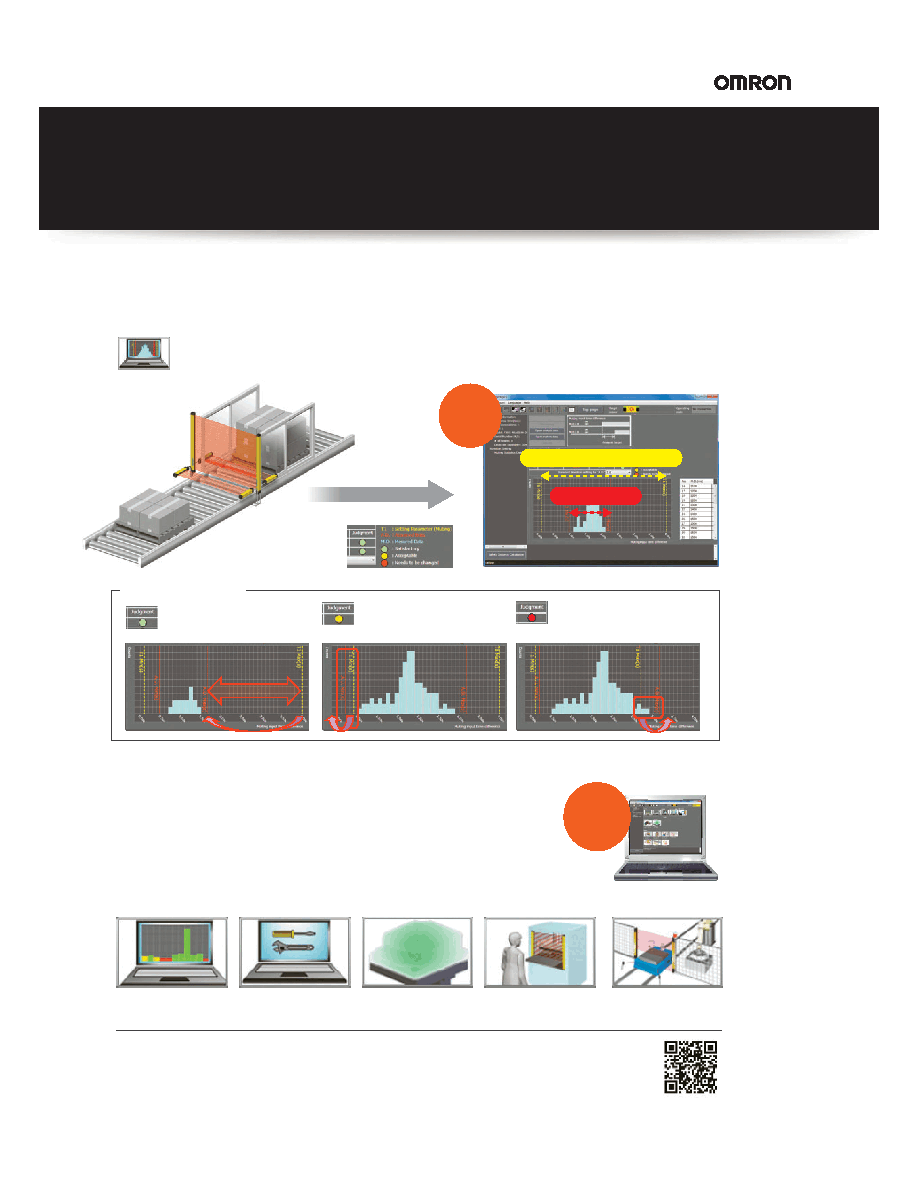

The Configuration Tool SD Manager2 visualizes the installation positions and settings by logging the muting sensor

operating conditions of the F3SG-R. It helps ensure reliable, first-time-right configuration.

From configuration and

adjustment to maintenance

The SD Manager2 helps you to

make and change settings.

Evaluates settings using

logged results

Examples of logging

Easy to use | Configuration Tool SD Manager2

Easy configuration and maintenance

Muting statistics

information

Easy- to-

understand

icons

The Configuration Tool SD Manager2 is available to download from

Omron website:

http://www.ia.omron.com/f3sg-r_tool

Eval

logg

ug a

information

safer operation range

OK, but big difference

between assumed and

setting ranges

OK, but big difference

between assumed and

setting ranges

Assumed range

> Setting range

Assumed range

> Setting range

Measured values

> Setting range

Measured values

> Setting range

Low risk of intermittent stop,

but not safe

OK in a test run, but intermittent stop

may occur during long-term operations

Test run result is out of setting range.

Muting sequence error occurred

I/O Setting

Function Setting

Maintenance

information

Auxiliary output/

lamp

Fixed blanking

Muting/override

Examples

Monitoring

Incident/ambient

light level monitoring

Monitor incident light levels

of each beam for fine tuning

Check error log and other data

required for maintenance

Change the settings assigned to each

output including lamp color and pattern

Set disabled beams manually

or by teach-in

Set disabled beams and time.

Setting can be evaluated

Muting time setting range

Assumed range

Visualization

helps facilitate

adjustment
