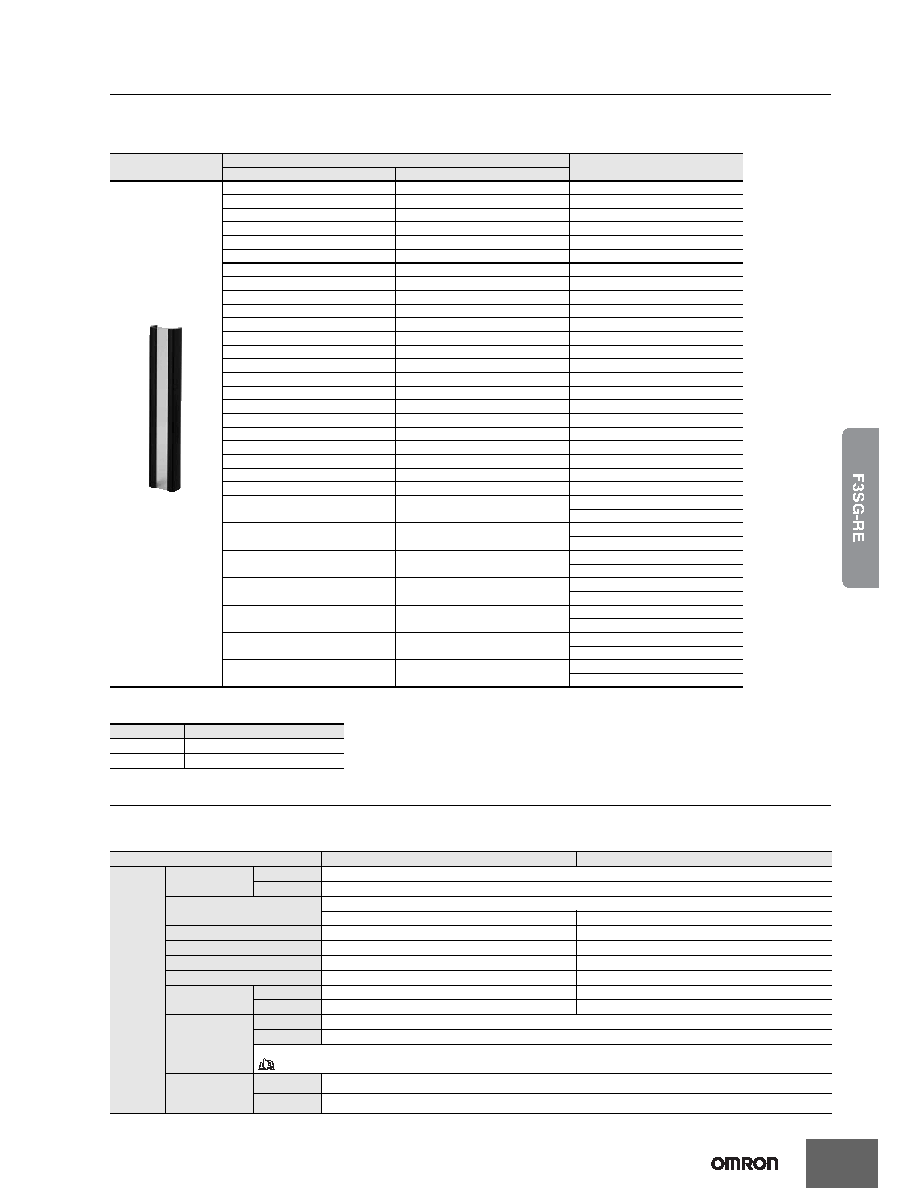

F3SG-R datasheet(77/164 Pages) OMRON

77 / 164 page

F3SG-RE

Spatter Protection Cover (2 covers per set, one for emitter and one for receiver)

Spatter Protection Covers include the mounting brackets.

For Safety Light Curtain models of the protective height of 2,000 mm or longer, use two Spatter Protection Covers of different lengths.

Note: The operating range of the Safety Light Curtain attached with the product is 10% shorter than the rating.

Test Rod

Ratings/Specifications

Main unit

The

@@@@ in the model names indicate the protective heights in millimeters.

Appearance

Safety Light Curtain Model

Model

Finger protection

Hand and arm protection

F3SG-4RE0160

@14

F3SG-4RE0190

@30

F39-HGB0180

F3SG-4RE0240

@14

F3SG-4RE0270

@30

F39-HGB0260

F3SG-4RE0320

@14

F3SG-4RE0350

@30

F39-HGB0340

F3SG-4RE0400

@14

F3SG-4RE0430

@30

F39-HGB0420

F3SG-4RE0480

@14

F3SG-4RE0510

@30

F39-HGB0500

F3SG-4RE0560

@14

F3SG-4RE0590

@30

F39-HGB0580

F3SG-4RE0640

@14

F3SG-4RE0670

@30

F39-HGB0660

F3SG-4RE0720

@14

F3SG-4RE0750

@30

F39-HGB0740

F3SG-4RE0800

@14

F3SG-4RE0830

@30

F39-HGB0820

F3SG-4RE0880

@14

F3SG-4RE0910

@30

F39-HGB0900

F3SG-4RE0960

@14

F3SG-4RE0990

@30

F39-HGB0980

F3SG-4RE1040

@14

F3SG-4RE1070

@30

F39-HGB1060

F3SG-4RE1120

@14

F3SG-4RE1150

@30

F39-HGB1140

F3SG-4RE1200

@14

F3SG-4RE1230

@30

F39-HGB1220

F3SG-4RE1280

@14

F3SG-4RE1310

@30

F39-HGB1300

F3SG-4RE1360

@14

F3SG-4RE1390

@30

F39-HGB1380

F3SG-4RE1440

@14

F3SG-4RE1470

@30

F39-HGB1460

F3SG-4RE1520

@14

F3SG-4RE1550

@30

F39-HGB1540

F3SG-4RE1600

@14

F3SG-4RE1630

@30

F39-HGB1620

F3SG-4RE1680

@14

F3SG-4RE1710

@30

F39-HGB1700

F3SG-4RE1760

@14

F3SG-4RE1790

@30

F39-HGB1780

F3SG-4RE1840

@14

F3SG-4RE1870

@30

F39-HGB1860

F3SG-4RE1920

@14

F3SG-4RE1950

@30

F39-HGB1940

F3SG-4RE2000

@14

F3SG-4RE2030

@30

F39-HGB1460

F39-HGA0550

F3SG-4RE2080

@14

F3SG-4RE2110

@30

F39-HGB1540

F39-HGA0550

−

F3SG-4RE2190

@30

F39-HGB1620

F39-HGA0550

−

F3SG-4RE2270

@30

F39-HGB1700

F39-HGA0550

−

F3SG-4RE2350

@30

F39-HGB1780

F39-HGA0550

−

F3SG-4RE2430

@30

F39-HGB1860

F39-HGA0550

−

F3SG-4RE2510

@30

F39-HGB1940

F39-HGA0550

Diameter

Model

14 mm dia.

F39-TRD14

30 mm dia.

F39-TRD30

F3SG-4RE

@@@@-14, F3SG-2RE@@@@-14

F3SG-4RE

@@@@-30, F3SG-2RE@@@@-30

Perfor-

mance

Type of ESPE

(IEC 61496-1)

Type 4

F3SG-4RE

@@@@@14/30

Type 2

F3SG-2RE

@@@@@14/30

Object Resolution

(Detection Capability)

Opaque objects

14-mm dia.

30-mm dia.

Beam Gap

10mm

20mm

Number of Beams

15 to 207

8 to 124

Lens Size

5.2

×3.4 (W×H) mm

7-mm dia.

Protective Height

160 to 2080 mm (6.3 to81.9 inch)

190 to 2510 mm (7.3 to98.7 inch)

Operating Range

Long

0.3 to 10.0 m (1 to 32 ft.)

0.3 to 20.0 m (1 to 65 ft.)

Short

0.3 to 3.0 m (1 to 10 ft.)

0.3 to 7.0 m (1 to 23 ft.)

Response Time

ON to OFF

5 to 15ms *1

OFF to ON

25 to 75ms *1

*1.Response time when used in one segment system

Refer to page 79.

Effective Aperture

Angle (EAA)

(IEC61496-2)

Type 4

±2.5° max., emitter and receiver at operating range of 3 m or greater

Type 2

±5.0° max., emitter and receiver at operating range of 3 m or greater
