Optical synchronization – No sync lines required

Optical synchronization eliminates the need of wiring for synchronization between the emitter and receiver.

The resulting flexible wiring reduces disconnection risk and avoids noise sources.

Smartclick cable connection

for fast set-up

No torque-control required:

the Smartclick connectors connect cables with just a 1/8th turn

of the M12 waterproof connector.

Simple wiring thanks to reduced

wiring connectors

* Smartclick is a registered trademark of OMRON Corporation.

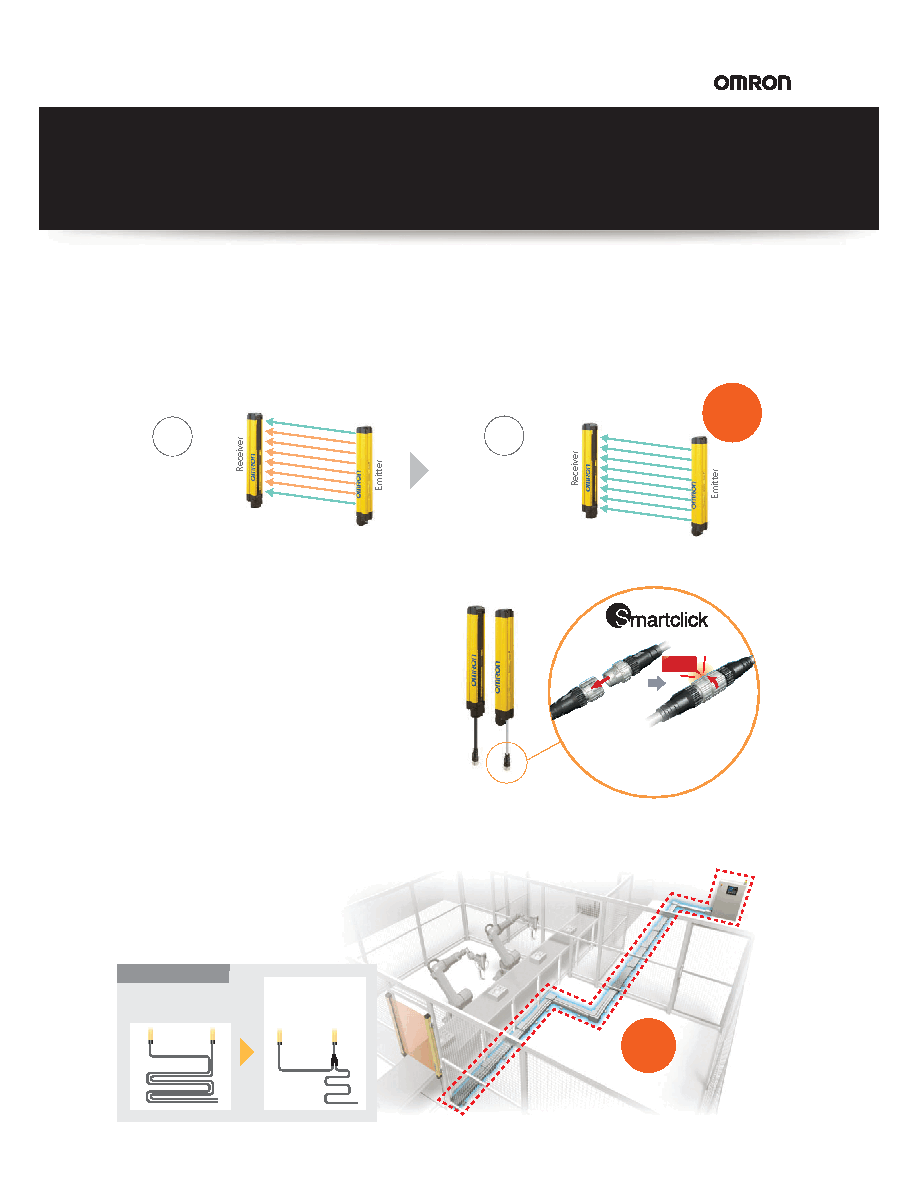

Optical synchronization

Start-up

The top or bottom

beam of the emitter

starts synchronizing

with the correspond-

ing beam of the

receiver.

After

sync

Once synchronization

is done, the emitter is

kept synchronized

with the receiver while

at least one beam is

unblocked.

Insert

fully

1/8th turn

Click!

Just a 1/8th turn

to connect

Cables of the emitter and

receiver

Previously

Only one cable

up to

100m

High

ambient light

immunity

Simple wiring makes installation faster.

Fewer cables reduce disconnection risk and noise trouble.
