F3SG-RE

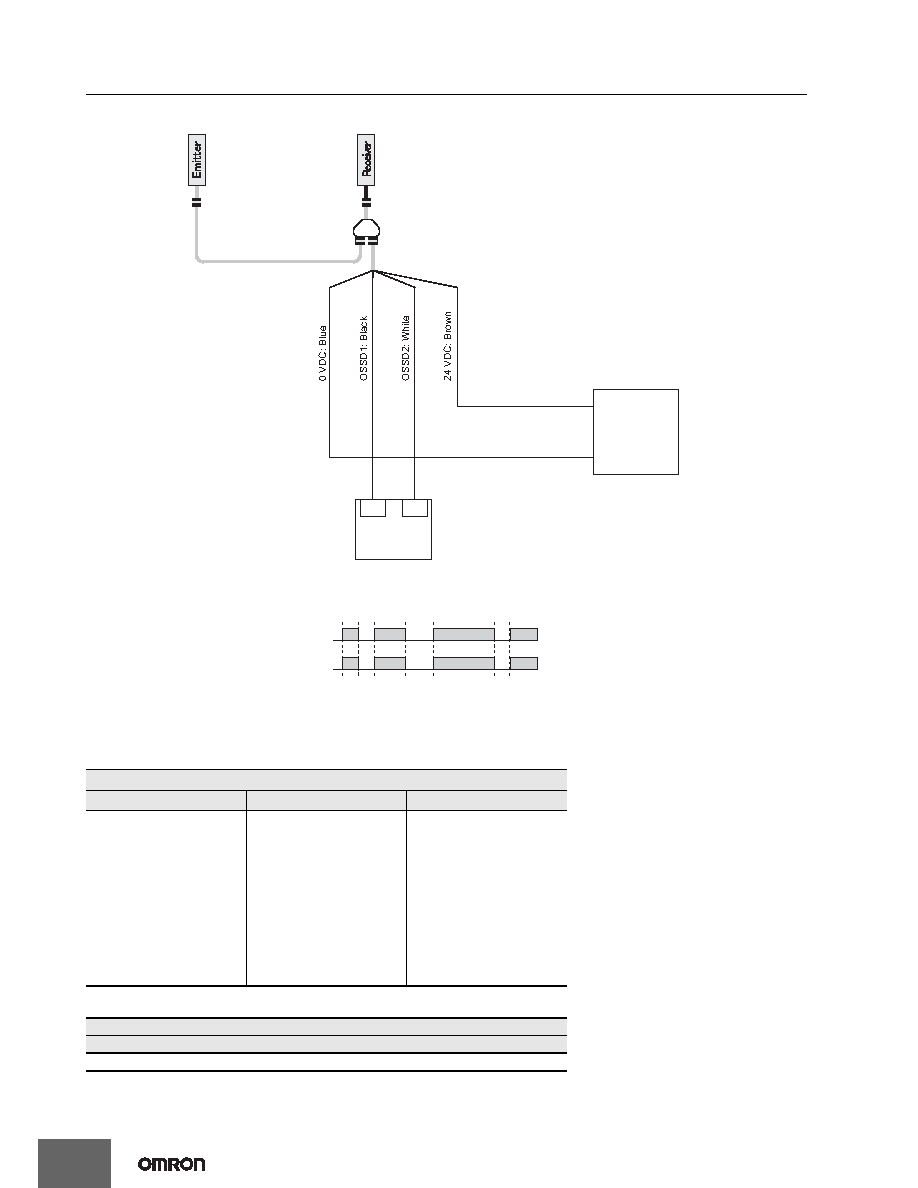

Standalone F3SG-RE with Y-Joint Plug/Socket Connector

Note: 1. When using the reduced wiring connector system F39-GCNY1, the Operating Range Selection is fixed to Long Mode.

2. For the functional earth connection, refer to the Short Mode example.

Connectable Safety Control Units

The F3SG-RE with PNP output can be connected to the safety control units listed in the table below.

The F3SG-R with NPN output can be connected to the safety control units listed in the table below.

Connectable Safety Control Units (PNP output)

Safety Relay Units

Flexible Safety Units

Safety Controllers

G9SA-301

G9SA-321-T

G9SA-501

G9SB-200-B

G9SB-200-D

G9SB-301-B

G9SB-301-D

G9SE-201

G9SE-401

G9SE-221-T

G9SX-AD322-T

G9SX-ADA222-T

G9SX-BC202

G9SX-GS226-T15

G9SP-N10S

G9SP-N10D

G9SP-N20S

NE0A-SCPU01

NE1A-SCPU01

NE1A-SCPU02

DST1-ID12SL-1

DST1-MD16SL-1

DST1-MRD08SL-1

NX-SIH400

NX-SID800

F3SP-T01

Connectable Safety Control Units (NPN output)

Safety Relay Units

G9SA-301-P

+24V DC

XS5W-D42 - 81-

F39-GCNY1

XS5F-D42 - 80-

IN1

IN2

Safety

Controller *1*2

Power supply

Unblocked

Blocked

OSSD

Beam state

*1.Refer to the following list "Connectable Safety Control Units" on

this page.

*2.The safety controller and the F3SG-RE must share the power

supply or be connected to the common terminal of the power

supply.
