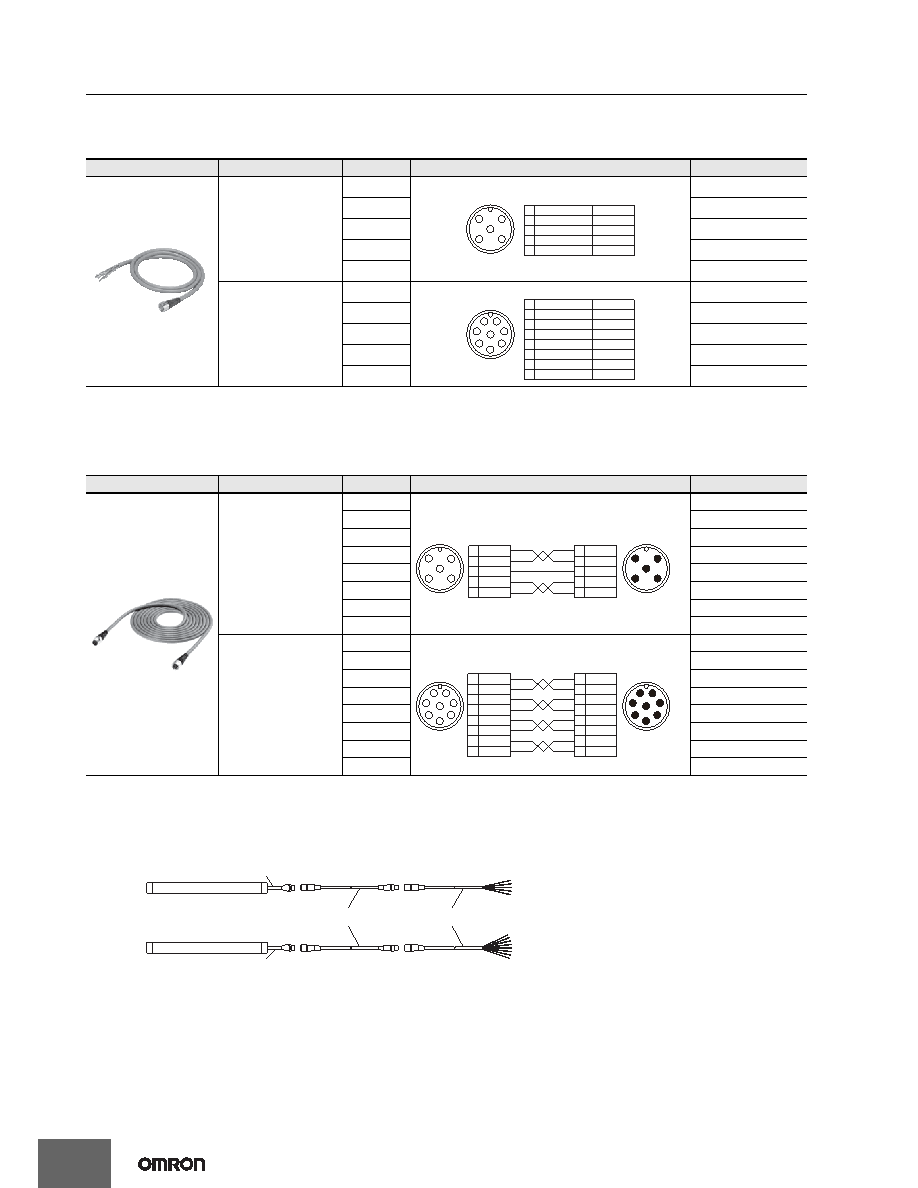

18 / 164 page  F3SG-RA 18 Accessories (Sold separately) Safety light curtain connecting cable Single-Ended Cable * * A set of two Single-Ended Cables (one for emitter and one for receiver) is also available. Model: Model number without the -L/-D at the end (F39-JG @A) Note: To extend the cable length to more than 20 m, add the F39-JG @B Double-Ended Cable. Double-Ended Cable * For cable extension and simple wiring * A set of two Double-Ended Cables (one for emitter and one for receiver) is also available. Model: Model number without the -L/-D at the end (F39-JG @B) Note: To extend the cable length to more than 20 m, add the F39-JG @B Double-Ended Cable to the F39-JG@A Single-Ended Cable. To extend the cable length to more than 40 m, add several Double-Ended Cables to the Single-Ended Cable. Example: To extend the cable length to 50 m, connect two F39-JG20B (20 m) cables and one F39-JG10A (10 m) cable. Appearance Type Cable length Specifications Model For emitter M12 connector (5-pin), 5 wires Color: Gray 3 m F39-JG3A-L 7 m F39-JG7A-L 10 m F39-JG10A-L 15 m F39-JG15A-L 20 m F39-JG20A-L For receiver M12 connector (8-pin), 8 wires Color: Black 3 m F39-JG3A-D 7 m F39-JG7A-D 10 m F39-JG10A-D 15 m F39-JG15A-D 20 m F39-JG20A-D Appearance Type Cable length Specifications Model For emitter M12 connector (5-pin) on both ends Color: Gray 0.5 m F39-JGR5B-L 1 m F39-JG1B-L 3 m F39-JG3B-L 5 m F39-JG5B-L 7 m F39-JG7B-L 10 m F39-JG10B-L 15 m F39-JG15B-L 20 m F39-JG20B-L For receiver M12 connector (8-pin) on both ends Color: Black 0.5 m F39-JGR5B-D 1 m F39-JG1B-D 3 m F39-JG3B-D 5 m F39-JG5B-D 7 m F39-JG7B-D 10 m F39-JG10B-D 15 m F39-JG15B-D 20 m F39-JG20B-D 5 3 2 1 4 Female 1 2 3 4 5 +24 VDC TEST 0 VDC Not used Not used Brown Black Blue White Yellow Connected to Power Cable or Double-Ended Cable 5 8 4 3 2 1 7 6 Female 2 7 5 6 1 +24 VDC 0 VDC OSSD 1 OSSD 2 RESET Brown Blue Black White Yellow 8 AUX Red 3 MUTE A Gray 4 MUTE B Pink Connected to Power Cable or Double-Ended Cable Brown Blue Black White Yellow 1 3 2 4 5 5 3 2 1 4 Brown Blue Black White Yellow 1 3 2 4 5 Female 5 4 1 2 3 Male Connected to Power Cable or Double-Ended Cable Connected to Single-Ended Cable, or Double-Ended Cable Brown Blue Black White Yellow Red Gray Pink Blue Black White Yellow Red Gray Pink 2 7 5 6 1 8 3 4 Brown 5 8 4 3 2 1 7 6 5 8 6 7 1 2 3 4 2 7 5 6 1 8 3 4 Connected to Power Cable or Double-Ended Cable Connected to Single-Ended Cable, or Double-Ended Cable Female Male Emitter Cable is gray F39-JG @B-L (Gray) F39-JG @A-L (Gray) Receiver Cable is black F39-JG @B-D (Black) Double-Ended Cable F39-JG @B Single-Ended Cable F39-JG @A F39-JG @A-D (Black) <Connection example> |
|
