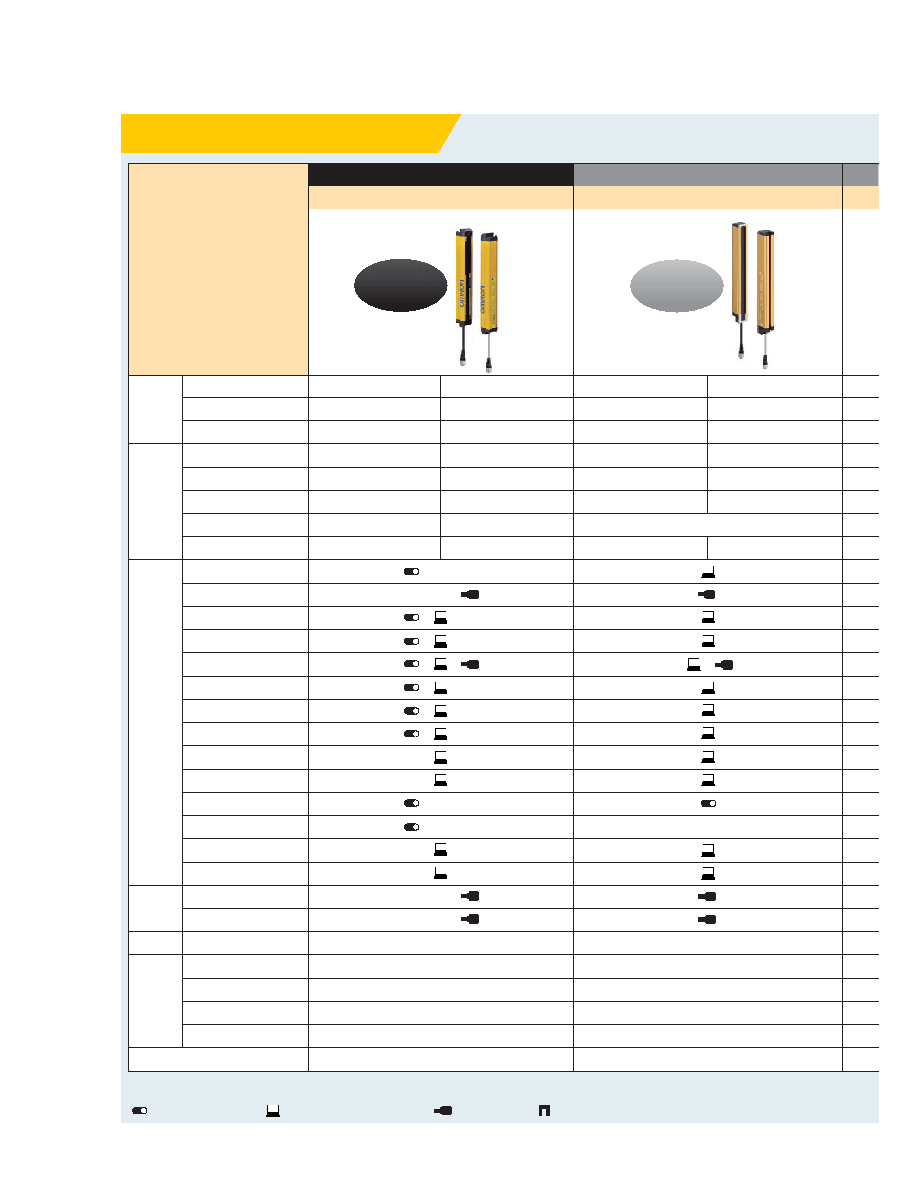

List of specifications and features

F3SG-RA

F3SG-RR

Advanced type

Robust type

Ideal for

flexible

manufacturing

Ideal for

environments where

cutting oil is present

12 | Safety Light Curtain F3SG-R Series

14-mm dia.

10 mm

0.3 to 10 m

160 to 2,080 mm

15 to 207

30-mm dia.

0.3 to 20 m

190 to 2,510 mm

8 to 124

14-mm dia.

10 mm

0.3 to 10 m

23 to 191

25-mm dia.

20 mm

0.3 to 17 m

12 to 96

IP67

•

IP67,IP67G

•

240 to 1,920 mm

20 mm

Finger protection

Hand and arm protection

Body protection

Detection capability

Beam gap

Operating range

Protective height

Number of beams

PNP/NPN Selection

External Test

Interlock

Pre-Reset

External Device Monitoring (EDM)

Auxiliary Output

Muting

Blanking

Reduced Resolution

Warning Zone

Scan Code Selection

Operating Range Selection

Response Time Adjustment

Designated Beam Output

Cascade Connection

Reduced wiring

Degree of protection

Lamp

Bluetooth communication unit

SD Manager2

Laser pointer

Application

Specification

Feature

Connection/

wiring

Environmental

resistance

Accessory

Setting by DIP Switch

Setting by Wiring

Setting by End Cap/Key Cap

Setting by Configuration Tool

*1. Supports PNP/NPN by switching between 0 V and 24 V active.

*2. The F3SG-RA-

□TS has different specifications. See the pages listed above for details.

More information

Page 16

(F3SG-RA-01TS : Page 93, F3SG-RA-02TS : Page 120*2)

Page 44
