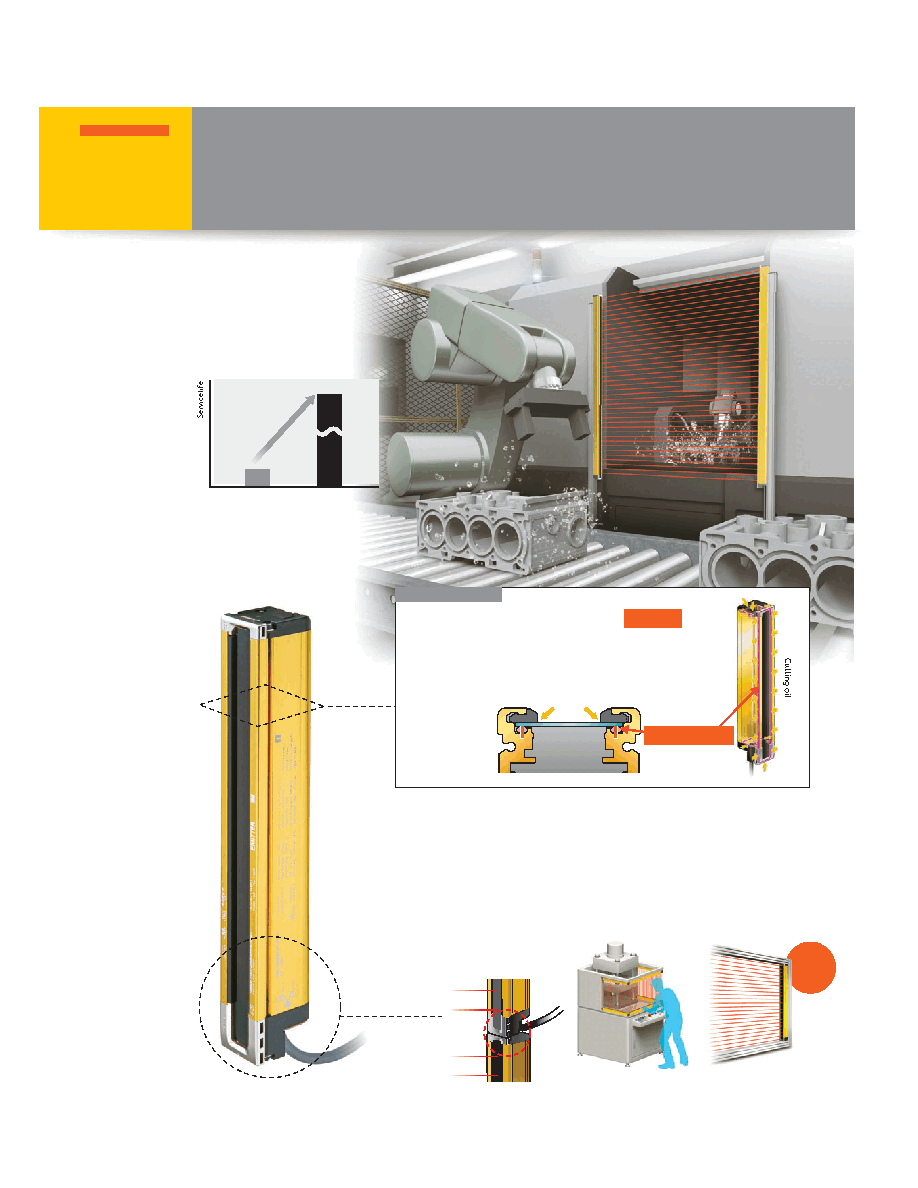

10 | Safety Light Curtain F3SG-R Series

Robust design for reliable use even in

cutting oil environments

IP67G

No dead space

The F3SG-R perfectly fits to machines without wasting space. Thanks to the Cascade

Connection function and perfect fit installation, you can series-connect light curtains to fit

various protective heights, reducing inventories.

F3SG-

Previous model

F3SJ-A/B

F3SG-RR

*1. Up to three sets of F3SG-R (up to 255 beams in total) can be series-connected.

*2. Protect cascading cables from cutting oil.

Example of 25 mm detection capability

Example of 25 m

The detection zone

completely covers the joint

25-mm dia.

Cutting oil resistant

Robust

type

NEW

No dead

space

Four times

Four times longer*

longer*

cutting oil resistance

Four times longer*

cutting oil resistance

The F3SG-RR has the ability to protect

from cutting oil (IP67G) for four times

longer than the previous model.

No gaps

Patented

Cutting oil

Unique construction

* Compared to the previous model

(Omron survey as of March 2017)

The optical surface is completely covered with rubber, and the

metal parts placed on the rubber are compressed and deformed

to seal tightly. This construction does not use double-sided tape

that oil can penetrate, preventing cutting oil from getting inside.

Completely blocked

e joint

No dead

space
