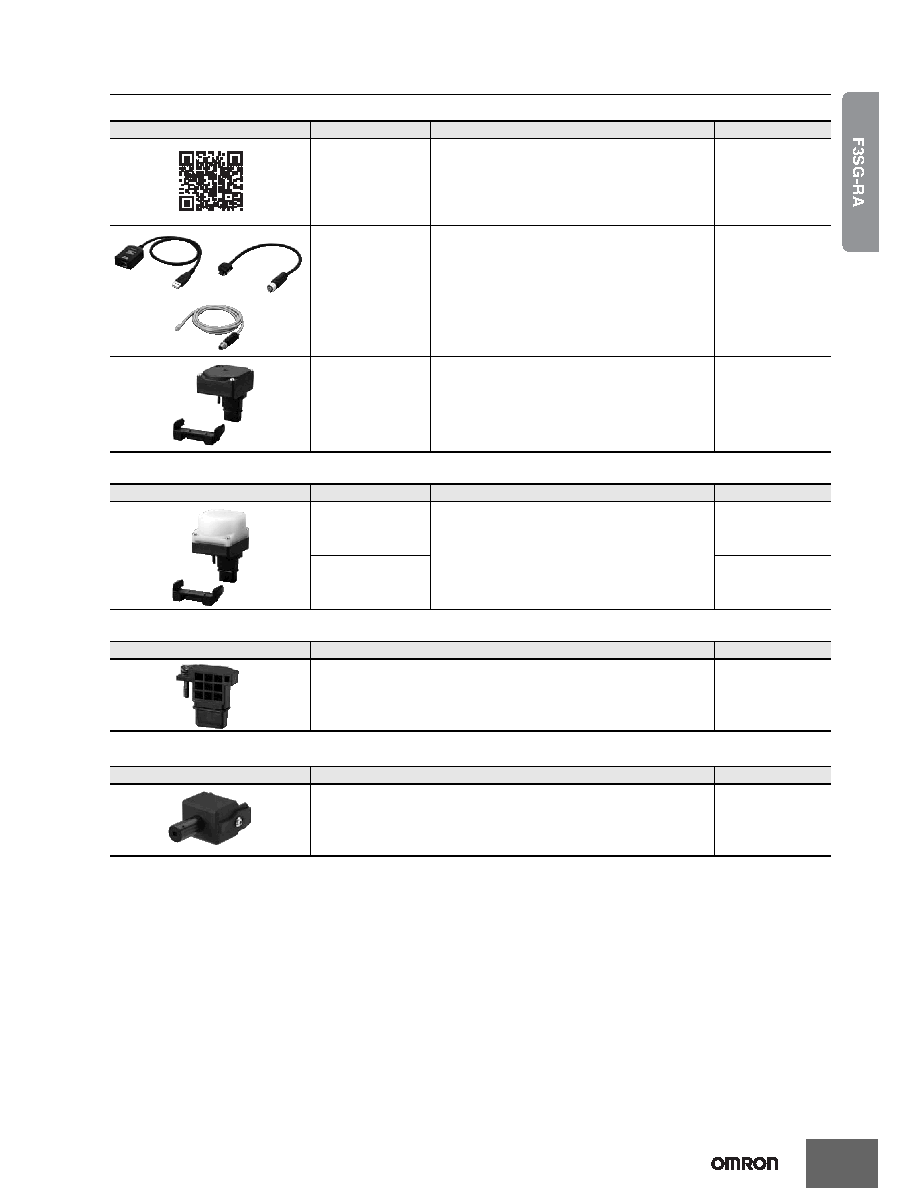

F3SG-RA

Interface units and configuration tool SD Manager 2

Lamp

End Cap

Laser Pointer for F3SG-R

Appearance

Type

Specifications

Model

SD Manager 2

The Configuration Tool SD Manager 2 is

available to download from our website at

http://www.ia.omron.com/f3sg-r_tool.

To change the settings of the F3SG-RA using

SD Manager 2, it is necessary to set the receiver's

two DIP switches No. 8 to ON.

−

Interface Unit

F39-GIF interface unit to connect the F3SG-RA

receiver to a USB port of the PC

Accessories:

0.3-m Dedicated Cable 1 (1),

2-m Dedicated Cable 2 (1),

Instruction Manual

F39-GIF

Bluetooth

Communication Unit

F39-BT bluetooth unit to enable bluetooth on the

F3SG-RA

IP67 rated when mated.

F39-BT

Appearance

Type

Specifications

Model

Lamp

The lamp can be connected to a receiver and turned ON

based on the operation of F3SG-RA/RR.

The lamp can indicate red, orange, and green colors,

to which three different states can be assigned.

IP67 rated when mated.

F39-LP

Lamp and Bluetooth

Communication Unit

F39-BTLP

Appearance

Specifications

Model

Housing color: Black

For both emitter and receiver

(Attached to the F3SG-RA. The End Cap can be purchased if lost.)

IP67 rated when mated.

F39-CNM

Appearance

Specifications

Model

The laser pointer is attached on the optical surface of the F3SG-R to help coarse

adjustment of beams.

F39-PTG
