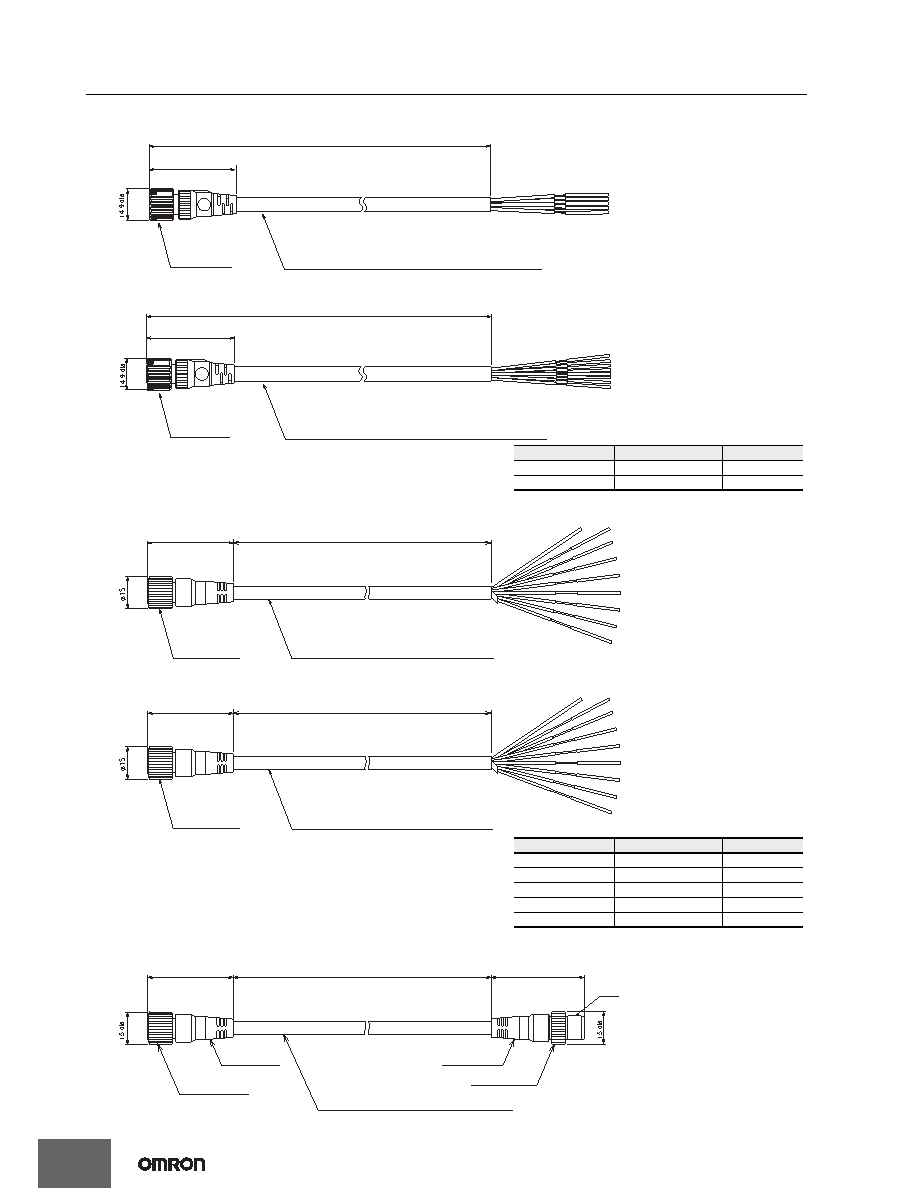

F3SG-RR

Safety light curtain connecting cable

Single-Ended Cable for Emitter (Oil-Resistant Cable) (F39-JD

@RA-L, sold separately)

Single-Ended Cable for Receiver (Oil-Resistant Cable) (F39-JD

@RA-D, sold separately)

Single-Ended Cable for Emitter (F39-JD

@A-L, sold separately)

Single-Ended Cable for Receiver (F39-JD

@A-D, sold separately)

Double-Ended Cable for Emitter: Cable for extension (F39-JD

@B-L, sold separately)

Fluororesin-insulated round cable dia. 6, 5-wire

(Cross section of conductor: 0.35 mm2(AWG22) / insulator diameter: dia. 1.13 mm)

M12 oil-resistant

connector

40.7

Fluororesin-insulated round cable dia. 6, 8-wire

(Cross section of conductor: 0.35 mm2(AWG22) / insulator diameter: dia. 1.13 mm)

M12 oil-resistant

connector

Emitter cable (Gray)

Receiver cable (Black)

L (m)

F39-JD3RA-L

F39-JD3RA-D

F39-JD7RA-L

F39-JD7RA-D

39.5

M12 IP67 connector

Insulated vinyl round cable dia. 6.6, shielded

8-wire (4-pair) (Cross section of conductor: 0.3mm2(AWG22) /

insulator diameter: dia. 1.15mm)

39.5

M12 IP67 connector

Insulated vinyl round cable dia. 6.6, shielded

8-wire (4-pair) (Cross section of conductor: 0.3mm2(AWG22) /

insulator diameter: dia. 1.15mm)

Emitter cable (Gray)

Receiver cable (Black)

L (m)

F39-JD3A-L

F39-JD3A-D

F39-JD7A-L

F39-JD7A-D

F39-JD10A-L

F39-JD10A-D

F39-JD15A-L

F39-JD15A-D

F39-JD20A-L

F39-JD20A-D

39.5

M12

M12 IP67 connector

Body color: Black

M12 IP67 connector

Insulated vinyl round cable dia. 6.6, shielded

8-wire (4-pair) (Cross section of conductor: 0.3mm2(AWG22) /

Insulator diameter: 1.15mm)
