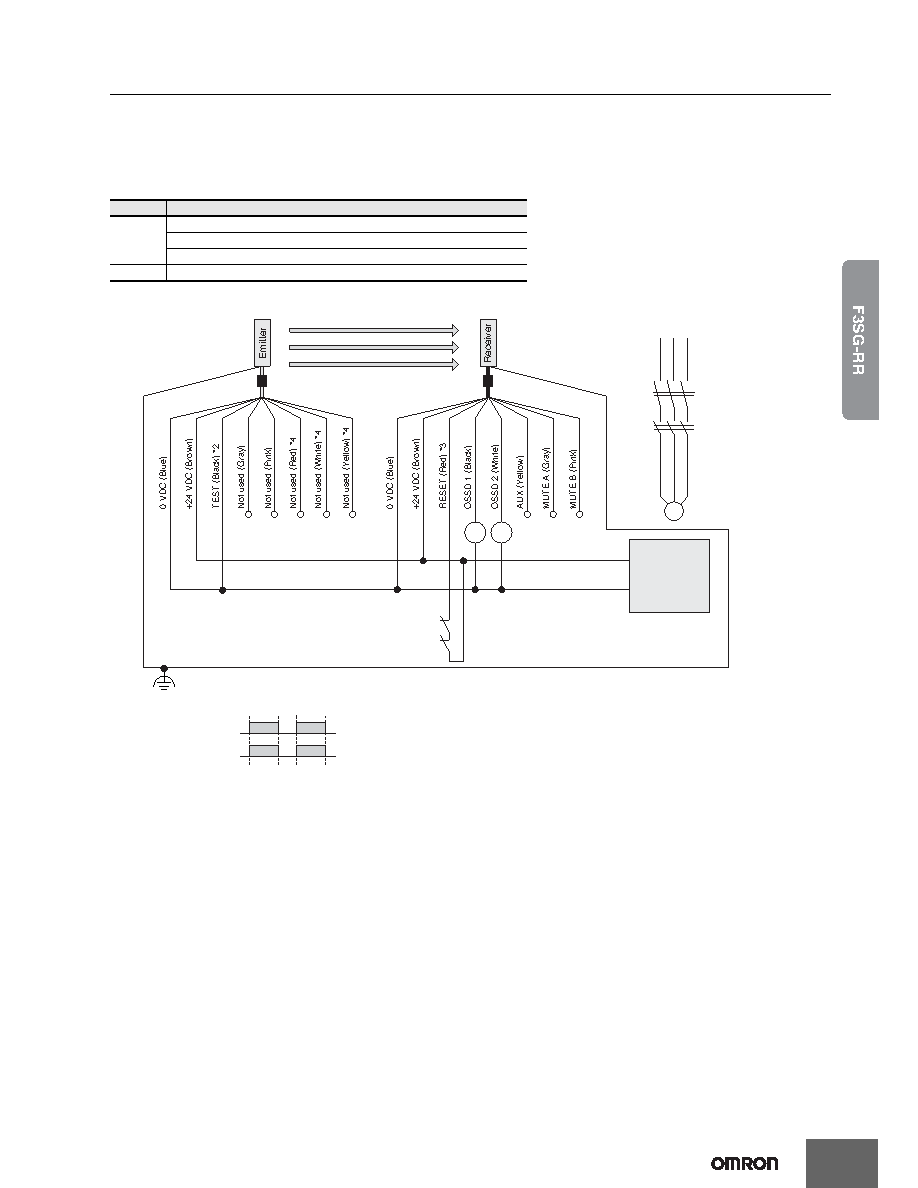

55 / 164 page ![]() F3SG-RR 55 Connections (Basic Wiring Diagram) Standalone F3SG-RR using PNP Outputs Auto Reset Mode, EDM enabled and PNP Outputs The following is the example of Muting not used, External Device Monitoring enabled, Auto Reset Mode, PNP outputs and External Test in 24 V Active (not used). Settings Wiring Example Note: Functional earth connection is unnecessary when you use the F3SG-RR in a general industrial environment where noise control or stable power supply is considered. However, when you use the F3SG-RR in an environment where there may be excessive noise from surroundings or stable power supply may be interfered, it is recommended the F3SG-RR be connected to functional earth. The wiring examples in later examples do not indicate functional earth. To use functional earth, wire an earth cable according to the example above. Refer to Safety Light Curtain F3SG-RR Series User's Manual for more information. Function Receiver EDM Enabled (factory default setting) *1 Auto Reset (factory default setting) *1 PNP (factory default setting) *1 Emitter External Test: 24 V Active (End Cap: Black) (factory default setting) Unblocked Blocked Beam state OSSD KM1, KM2: Safety relay with forcibly guided contacts (G7SA) M: Motor Functional Earth F39-JD @@A-L *5 F39-JD @@A-D *5 KM1 KM2 M KM1 KM2 KM1 KM2 Power Supply +24 VDC 0 VDC *1.The functions are configurable with Configuration Tool. Refer to Safety Light Curtain Configuration Tool for Model F3SG (SD Manager 2) User’s Manual for more information on setting the functions by the Configuration Tool. *2.Connect the line to 24 V via a test switch (N.O. contact) if External Test is used. *3.Also used as EDM input line. Connect a lockout reset switch (N.C. contact) to this line in series with the KM1 and KM2 if Lockout Reset is used. *4.The F39-JD @RA-L Single-Ended Cable for Emitter (Oil-Resistant Cable) does not have the red, white and yellow wires. *5.For the F39-JD @A-@ Single-Ended Cable, connect the shield line to 0 V. |
|
