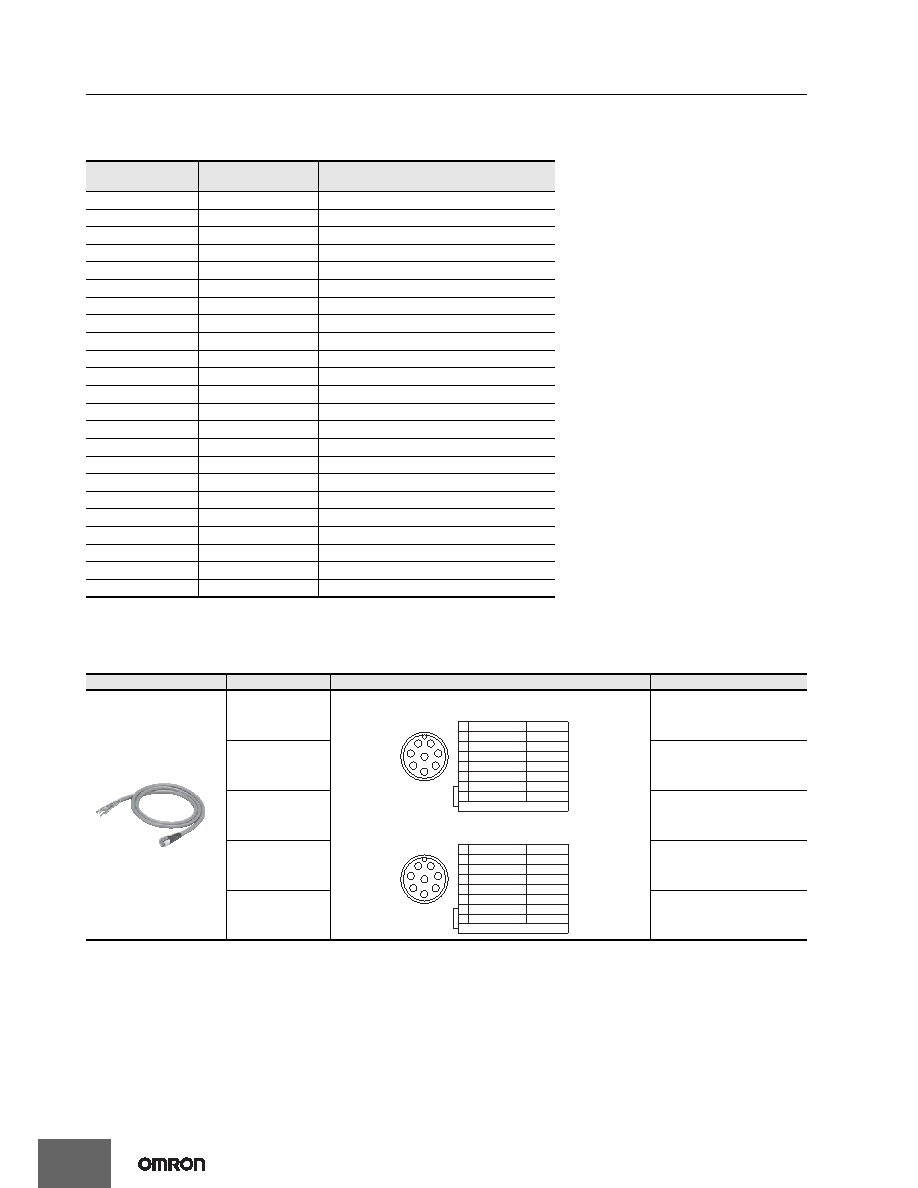

94 / 164 page  F3SG-RA-01TS 94 Ordering Information Main Units Safety Light Curtain Hand and arm protection Accessories (Sold separately) Safety light curtain connecting cable Single-Ended Cable (2 cables per set, one for emitter and one for receiver) * * The cable for emitter and the cable for receiver are available separately. Add '-L' for emitter or '-D' for receiver to the end of the model number when you order. Single-Ended Cable for Emitter: F39-JD @A-L, Single-Ended Cable for Receiver: F39-JD@A-D Note: To extend the cable length to more than 20 m, add the F39-JD @B Double-Ended Cable. Number of beams Protective height (mm) Model 8 185 F3SG-4RA0185-25-01TS 12 265 F3SG-4RA0265-25-01TS 16 345 F3SG-4RA0345-25-01TS 20 425 F3SG-4RA0425-25-01TS 24 505 F3SG-4RA0505-25-01TS 28 585 F3SG-4RA0585-25-01TS 32 665 F3SG-4RA0665-25-01TS 36 745 F3SG-4RA0745-25-01TS 40 825 F3SG-4RA0825-25-01TS 44 905 F3SG-4RA0905-25-01TS 48 985 F3SG-4RA0985-25-01TS 52 1,065 F3SG-4RA1065-25-01TS 56 1,145 F3SG-4RA1145-25-01TS 60 1,225 F3SG-4RA1225-25-01TS 64 1,305 F3SG-4RA1305-25-01TS 68 1,385 F3SG-4RA1385-25-01TS 72 1,465 F3SG-4RA1465-25-01TS 76 1,545 F3SG-4RA1545-25-01TS 80 1,625 F3SG-4RA1625-25-01TS 84 1,705 F3SG-4RA1705-25-01TS 88 1,785 F3SG-4RA1785-25-01TS 92 1,865 F3SG-4RA1865-25-01TS 96 1,945 F3SG-4RA1945-25-01TS Appearance Cable length Specifications Model 3m F39-JD3A 7m F39-JD7A 10m F39-JD10A 15m F39-JD15A 20m F39-JD20A Connected to Power Cable or Double-Ended Cable 5 8 4 3 2 1 7 6 Female 2 7 5 6 1 +24 VDC 0 VDC Not used Not used Not used Brown Blue Gray Pink White 8 Not used Red 3TEST Black 4 Not used Yellow Shield Connected to Power Cable or Double-Ended Cable 5 8 4 3 2 1 7 6 Female 2 7 5 6 1 +24 VDC 0 VDC Not used Not used OSSD 2 Brown Blue Gray Pink White 8EDM Red 3OSSD 1 Black 4 AUX Yellow Shield For emitter M12 connector (8-pin), Color: Gray For receiver M12 connector (8-pin), Color: Gray |
|
