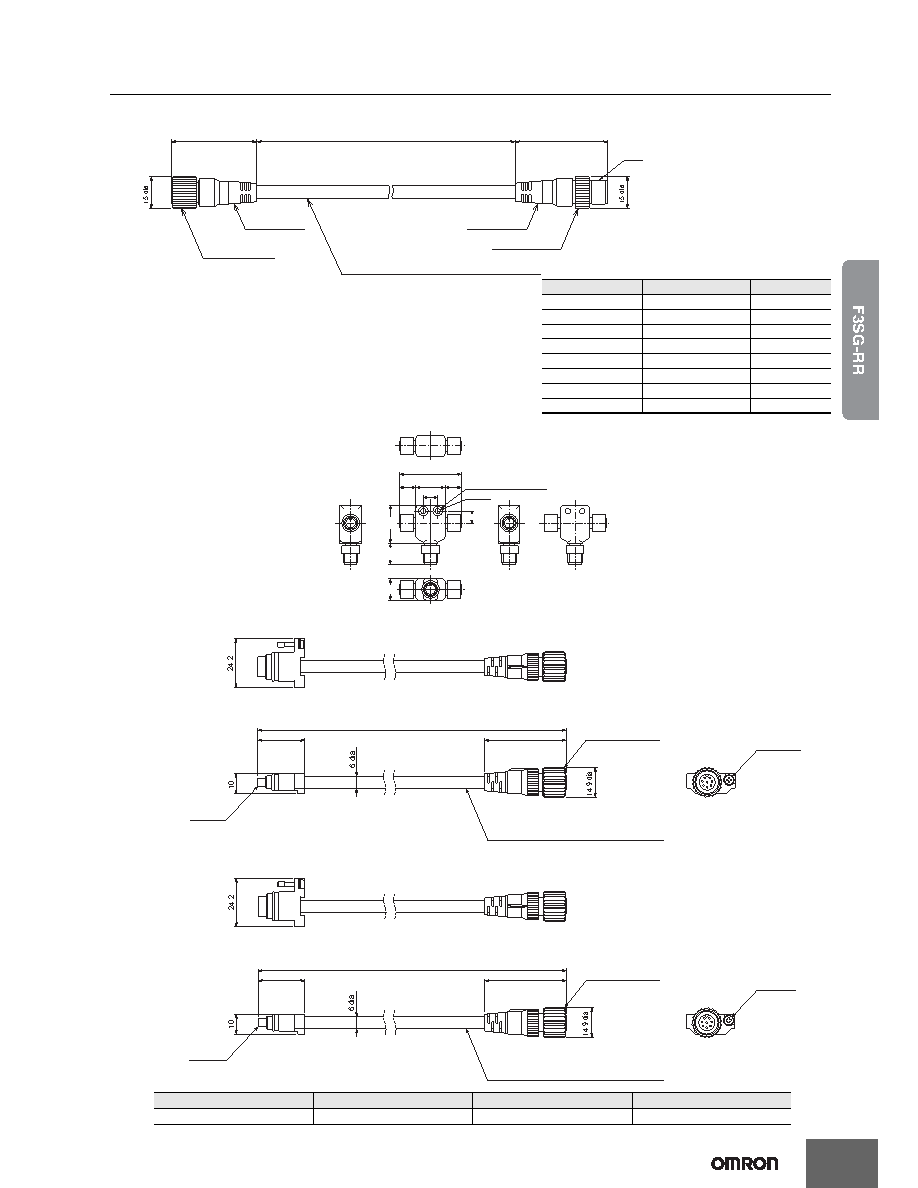

F3SG-RR

Double-Ended Cable for Receiver: Cable for extension (F39-JD

@B-D, sold separately)

Cascading Cable for Emitter (F39-JGR2WTS-L, sold separately)

Cascading Cable for Receiver (F39-JGR2WTS-D, sold separately)

Emitter cable (Gray)

Receiver cable (Black)

L (m)

F39-JDR5B-L

F39-JDR5B-D

0.5

F39-JD1B-L

F39-JD1B-D

F39-JD3B-L

F39-JD3B-D

F39-JD5B-L

F39-JD5B-D

F39-JD7B-L

F39-JD7B-D

F39-JD10B-L

F39-JD10B-D

F39-JD15B-L

F39-JD15B-D

F39-JD20B-L

F39-JD20B-D

Set model name

Emitter cable (Gray)

Receiver cable (Black)

L (m)

F39-JGR2WTS

F39-JGR2WTS-L

F39-JGR2WTS-D

0.2

39.5

M12

Body color: Black

M12 IP67 connector

Insulated vinyl round cable dia. 6.6, shielded

8-wire (4-pair) (Cross section of conductor: 0.3mm2(AWG22) /

Insulator diameter: 1.15mm)

24.7

13.6

13.6 8 dia. (SPOT FACING 2)

4.5 dia.

(52)

32.1

17.7

Reduced Wiring Connector

(F39-CN5, sold separately)

200

40.7

23.4

Insulated vinyl round cable dia. 6 mm, 5-wire

(Cross section of conductor: 0.15 mm2 (AWG26) /

Insulator diameter: dia. 1 mm)

M12 IP67 connector

M2.5 screw

Connector

200

40.7

23.4

Insulated vinyl round cable dia. 6 mm, 8-wire

(Cross section of conductor: 0.15 mm2 (AWG26) /

Insulator diameter: dia. 1 mm)

Connector

M12 IP67 connector

M2.5 screw
