F3SG-RA

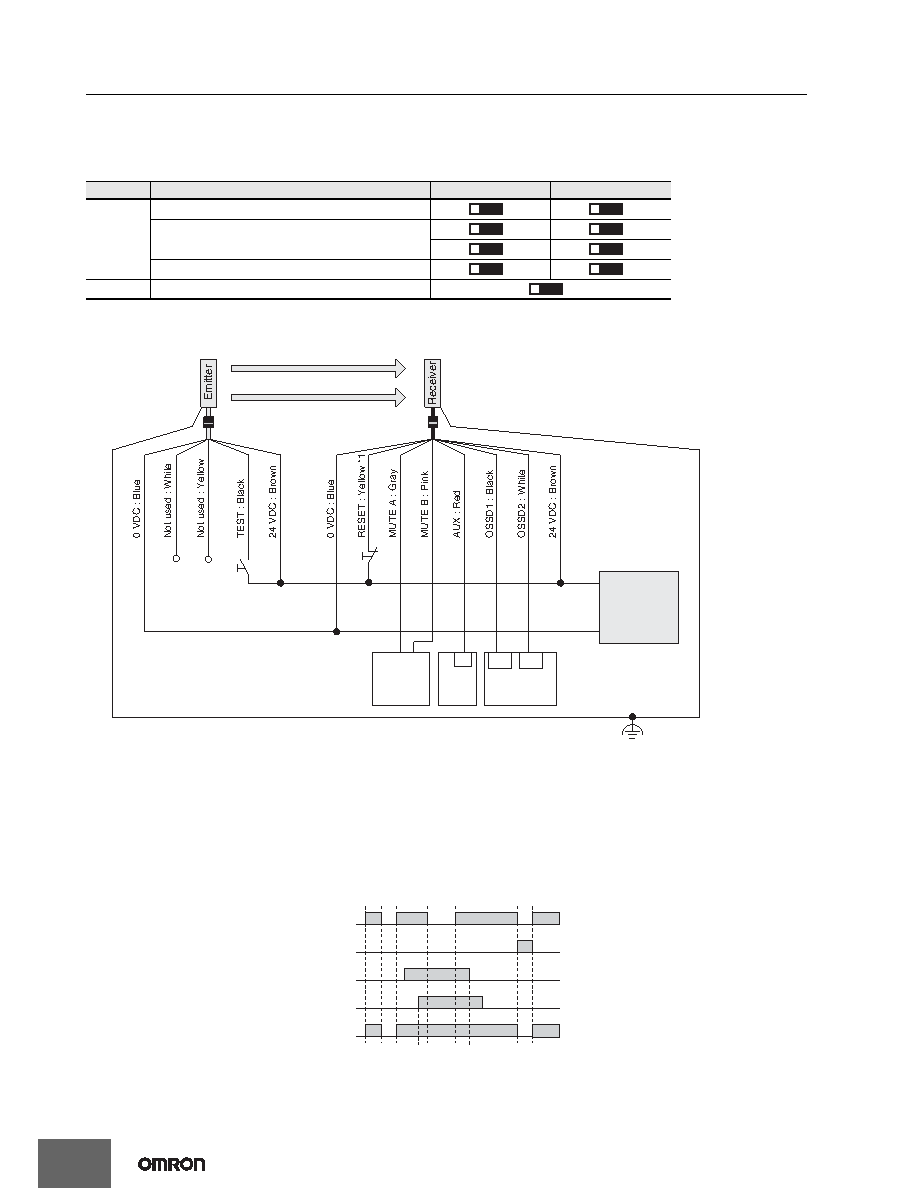

Connections (Basic Wiring Diagram)

Standalone F3SG-RA using PNP Outputs

Standard Muting Mode/Exit-Only Muting Mode using PNP Outputs

The following is the example of External Device Monitoring disabled, Auto Reset mode, PNP output and External Test in 24 V Active.

DIP Switch settings *6

: Indicates a switch position.

Configure functions with the DIP Switches before wiring.

Wiring Example

Note: Functional earth connection is unnecessary when you use the F3SG-RA in a general industrial environment where noise control or stable

power supply is considered. However, when you use the F3SG-RA in an environment where there may be excessive noise from

surroundings or stable power supply may be interfered, it is recommended the F3SG-RA be connected to functional earth.

The wiring examples in later examples do not indicate functional earth. To use functional earth, wire an earth cable according to the example

above. Refer to Safety Light Curtain F3SG-R Series User's Manual for more information.

Function

DIP-SW1

DIP-SW2

Receiver

EDM Disabled (factory default setting)

Auto Reset (factory default setting)

PNP (factory default setting)

Emitter

External Test: 24 V Active (factory default setting)

2ON

3ON

4ON

7ON

4ON

S1: Test Switch (Connect the line to 0 V if this switch

is not required)

S2: Lockout/Interlock Reset Switch,

Override Switch

or Override Cancel Switch

Power Supply

+24 VDC

0 VDC

Safety

Controller *3 *4

Muting

Actuator *5

IN1

IN2

Unblocked

Blocked

MUTE A

MUTE B

OSSD

Test Switch (S1)

Beam state

PLC *7

F39-JG

@A-L

F39-JG

@A-D

Functional Earth

*1.Also used as Override input line.

*2.Make sure to connect an override cancel switch to the Reset line when using the override function.

Otherwise the override state may not be released by the override cancel switch, resulting in serious

injury.

*3.Refer to page 30 for more information.

*4.The safety controller and the F3SG-RA must share the power supply or be connected to the common

terminal of the power supply.

*5.Refer to Smart Muting Actuator F3W-MA Series User's Manual for more information.

*6.The functions are configurable with DIP Switch. Refer to Safety Light Curtain F3SG-R Series User's

Manual for more information on setting the functions by the DIP Switch.

*7.When connecting to the PLC, the output mode must be changed with the Configuration Tool

according to your application.
