F3SG-R datasheet(19/164 Pages) OMRON

19 / 164 page

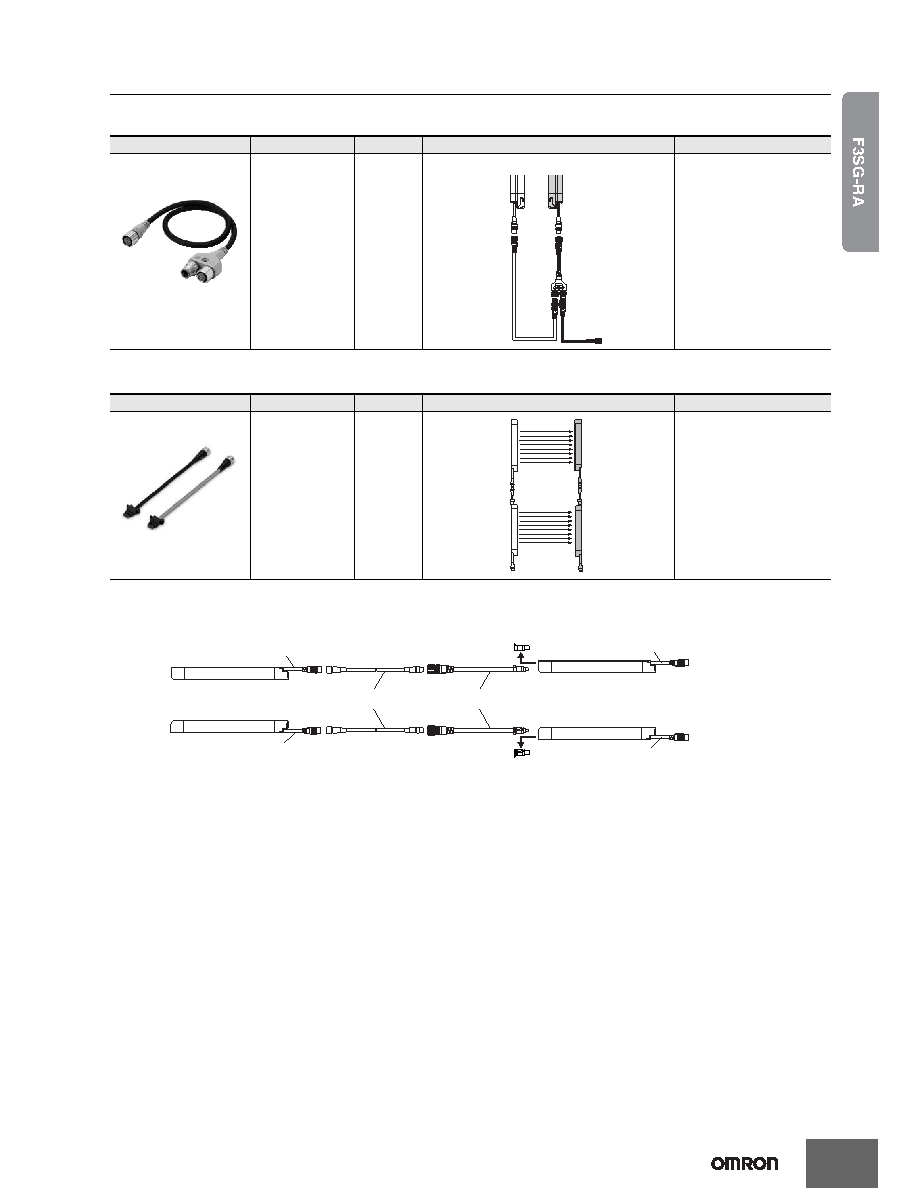

F3SG-RA

Y-Joint Plug/Socket Connector for F3SG-4RA

@@@@-14/-4RA@@@@-30

For reduced wiring

* Order the cable for emitter (end of model: -L) and the cable for receiver (end of model: -D).

Cascading Cable (2 cables per set, for emitter and receiver)

Note: The Double-Ended Cable (up to 10 m: F39-JG10B) can be added to extend the cable length between the series-connected sensors.

Cable length between sensors: 10 m max. (not including cascading cable (F39-JGR2W) and power cable)

Appearance

Type

Cable length

Specifications

Model

M12 connectors.

Used for reduced

wiring.

0.5 m

F39-GCNY2

Appearance

Type

Cable length

Specifications

Model

Emitter cable:

Cap (5-pin), M12

connector (5-pin)

Receiver cable:

Cap (8-pin), M12

connector (8-pin)

0.2 m

F39-JGR2W

F3SG-RA

Emitter

Double-Ended Cable

F39-JG

@B-L (Gray) *

Single-Ended Cable

F39-JG

@A-D (Black) *

Y-Joint Plug/

Socket Connector for Advanced type

F39-GCNY2

F3SG-RA

Receiver

Secondary

sensor 1

(Emitter)

Secondary

sensor 1

(Receiver)

Primary

sensor

(Emitter)

Primary

sensor

(Receiver)

Cascading Cable

F39-JGR2W

Cable

F39-JG

@@@-D

Cable

F39-JG

@@@-L

Emitter

Receiver

Cable is gray

F39-JG

@B-L (Gray)

Double-Ended Cable

F39-JG

Cable is black

F39-JG

@B-D (Black)

Cascading Cable

F39-JGR2W

Emitter

Receiver

Cable is gray

Cable is black

Remove the cap
