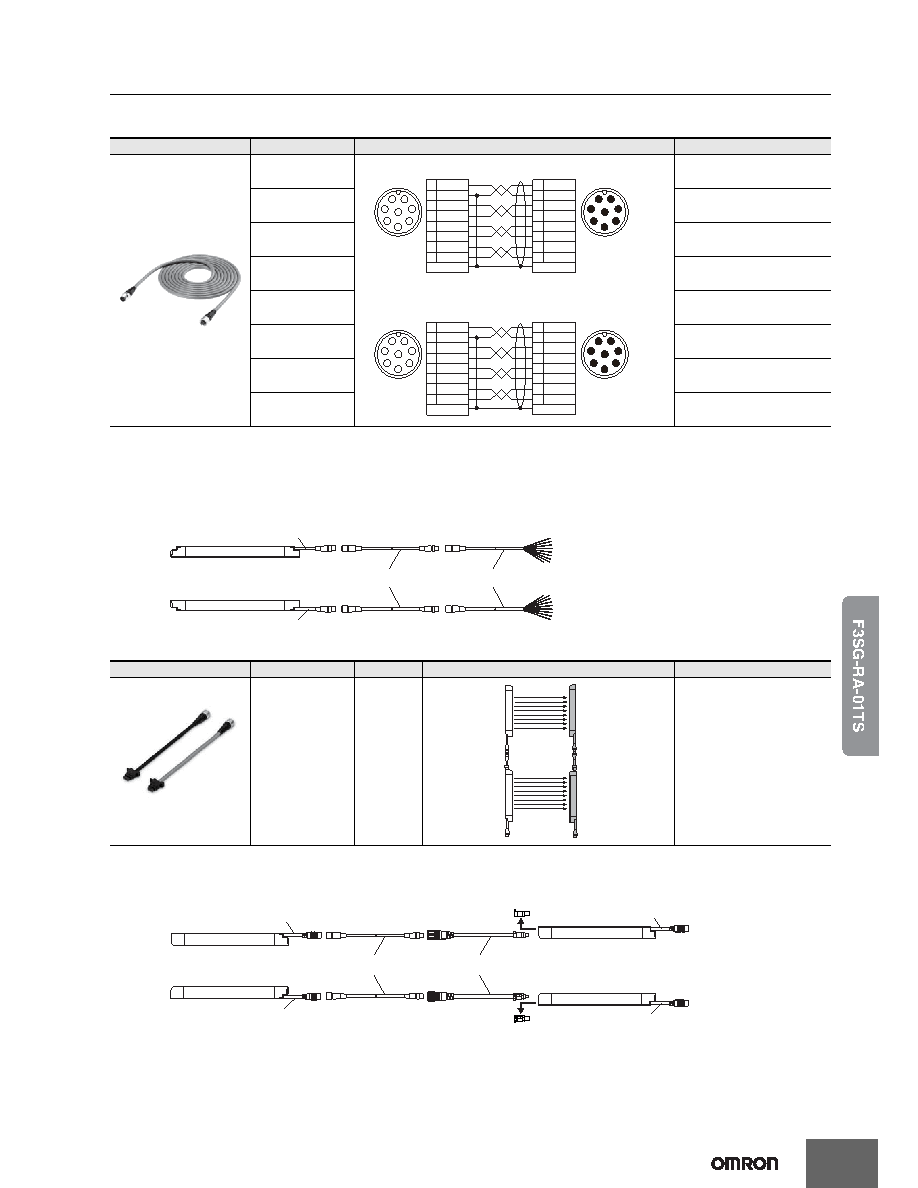

95 / 164 page  F3SG-RA-01TS 95 Doble-Ended Cable (2 cables per set, one for emitter and one for receiver) * For cable extension * The cable for emitter and the cable for receiver are available separately. Add '-L' for emitter or '-D' for receiver to the end of the model number when you order. Double-Ended Cable for Emitter: F39-JD(R) @B-L, Double-Ended Cable for Receiver: F39-JD(R)@B-D Note: To extend the cable length to more than 20 m, add the F39-JD @B Double-Ended Cable to the F39-JD@A Single-Ended Cable. To extend the cable length to more than 40 m, add several Double-Ended Cables to the Single-Ended Cable. Example: To extend the cable length to 50 m, connect two F39-JD20B (20 m) cables and one F39-JD10A (10 m) cable. Cascading Cable (2 cables per set, for emitter and receiver) Note: The Double-Ended Cable (up to 10 m: F39-JD10B) can be added to extend the cable length between the series-connected sensors. Cable length between sensors: 10 m max. (not including cascading cable (F39-JGR2WTS) and power cable) Appearance Cable length Specifications Model 0.5 m F39-JDR5B 1 m F39-JD1B 3 m F39-JD3B 5 m F39-JD5B 7 m F39-JD7B 10 m F39-JD10B 15 m F39-JD15B 20 m F39-JD20B Appearance Type Cable length Specifications Model Cap (8-pin), M12 connector (8-pin) 0.2m F39-JGR2WTS Brown Blue Gray Pink White Red Black Yellow Blue Gray Pink White Red Black Yellow 2 7 5 6 1 8 3 4 Brown 5 8 4 3 2 1 7 6 5 8 6 7 1 2 3 4 2 7 5 6 1 8 3 4 Female Male Shield Shield Brown Blue Gray Pink White Red Black Yellow Blue Gray Pink White Red Black Yellow 2 7 5 6 1 8 3 4 Brown 5 8 4 3 2 1 7 6 5 8 6 7 1 2 3 4 2 7 5 6 1 8 3 4 Connected to Power Cable or Double-Ended Cable Connected to Single-Ended Cable, or Double-Ended Cable Female Male Shield Shield For emitter M12 connector (8-pin), Color: Gray For receiver M12 connector (8-pin), Color: Black <Connection example> Emitter Receiver Cable is gray F39-JD @B-L (Gray) F39-JD @A-L (Gray) Double-Ended Cable F39-JD @B Single-Ended Cable F39-JD @A Cable is black F39-JD @B-D (Black) F39-JD @A-D (Black) Secondary sensor 1 (Emitter) Secondary sensor 1 (Receiver) Primary sensor (Emitter) Primary sensor (Receiver) Cascading Cable F39-JGR2WTS Cable F39-JD @A-D Cable F39-JD @A-L Emitter Receiver Cable is gray F39-JD @B-L (Gray) Double-Ended Cable F39-JD @B Cable is black F39-JD @B-D (Black) Cascading Cable F39-JGR2WTS Emitter Receiver Cable is gray Cable is black Remove the cap Remove the cap <Connection example> |
|
