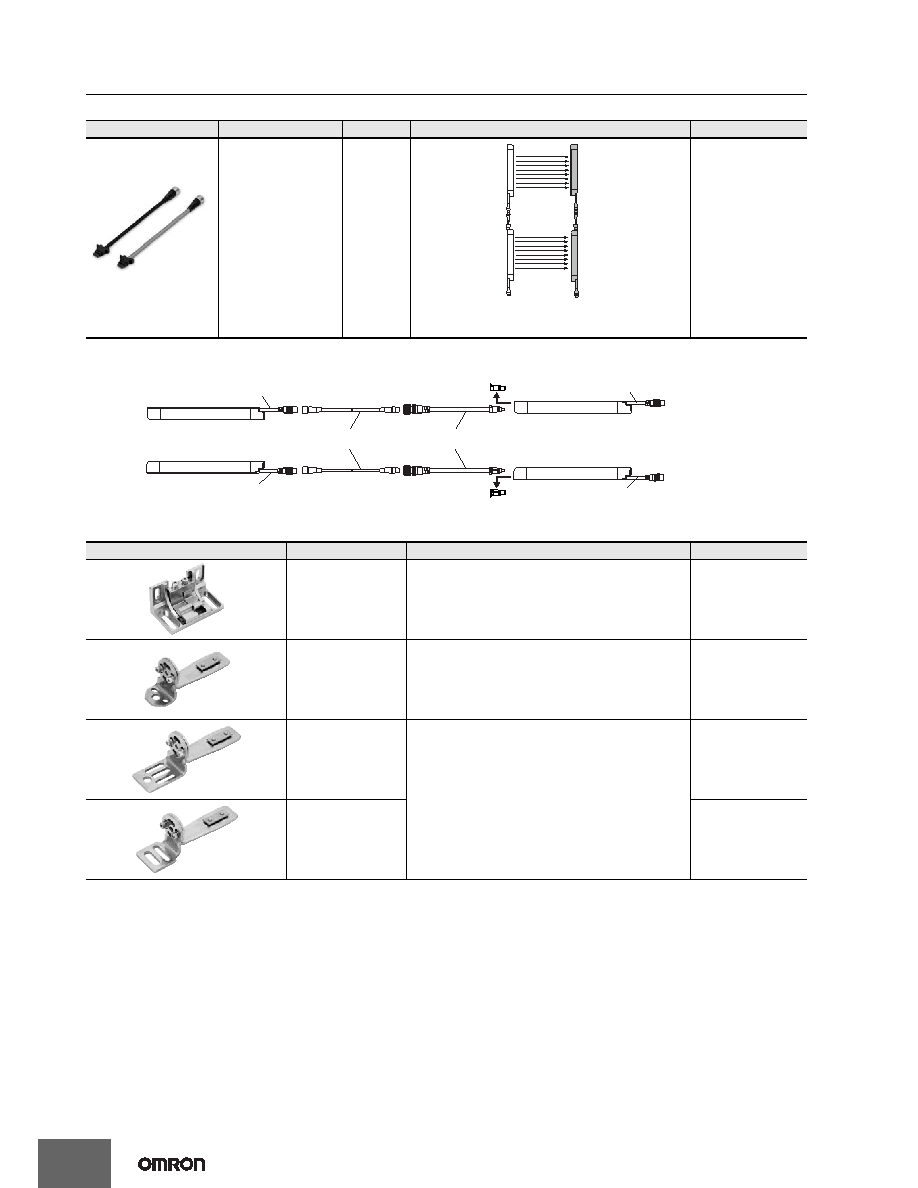

F3SG-RR

Cascading Cable (2 cables per set, one for emitter and one for receiver)

Note: The Double-Ended Cable (up to 10 m: F39-JD10B) can be added to extend the cable length between the series-connected sensors.

Cable length between sensors: 10 m max. (not including cascading cable (F39-JGR2WTS) and power cable)

Sensor Mounting Brackets

*1. Protective height of 0240 to 1200 mm: 2 sets, Protective height of 1280 to 1920 mm: 3 sets

*2. Use the Top/Bottom Bracket in combination with the Intermediate Bracket.

Protective height of 1040 or less: The Intermediate Bracket is not required. Please purchase 1 set of Top/Bottom Brackets (F39-LGRTB(-2/-3)).

Protective height of 1120 to 1920: Please purchase 1 set of Top/Bottom Brackets (F39-LGRTB(-2/-3)) and 1 set of Intermediate Brackets (F39-

LGRA).

Appearance

Type

Cable length

Specifications

Model

Cap (8-pin), M12

connector (8-pin)

0.2 m

F39-JGR2WTS

Appearance

Specifications

Application

Model

Free-Location Bracket

(Intermediate Bracket)

Beam alignment after mounting possible. The angle

adjustment range is ±15°.

Side mounting and backside mounting possible.

(Sold separately as a set of 2 brackets. Refer to note *1

for the number of sets required for each model.)

F39-LGRA

Top/Bottom Bracket *2

Use this bracket at the top and bottom positions of the

F3SG-RR. Beam alignment after mounting possible. The

angle adjustment range is ±22.5°.

Side mounting and backside mounting possible.

(Sold separately as a set of 4 brackets.)

F39-LGRTB

Top/Bottom Bracket *2 The part of this bracket to contact with a wall surface has

a different shape from the F39-LGRTB Top/Bottom

Bracket.

Use this bracket when replacing an existing safety light

curtain with the F3SG-RR.

(Sold separately as a set of 4 brackets.)

Select a bracket that fit into the existing mounting hole.

F39-LGRTB-2

Top/Bottom Bracket *2

F39-LGRTB-3

IP67* rated when mated.

* When the accessory is used, protect it from cutting oil.

Secondary

sensor 1

(Emitter)

Secondary

sensor 1

(Receiver)

Primary

sensor

(Emitter)

Primary

sensor

(Receiver)

Cascading Cable

F39-JGR2WTS

Cable

F39-JD

@A-D

Cable

F39-JD

@A-L

Cable is black

F39-JD

@B-D (Black)

Cable is black

Remove the cap

Double-Ended Cable

F39-JD

Cascading Cable

F39-JGR2WTS

Cable is gray

F39-JD

@B-L (Gray)

Cable is gray

Remove the cap

Emitter

Receiver

Emitter

Receiver
