F3SG-RA-02TS

131

Connections (Basic Wiring Diagram)

Standalone F3SG-RA-02TS

EDM used and External Test in 24V Active not used

The following is the example of External Device Monitoring used and External Test in 24 V Active not used.

Settings

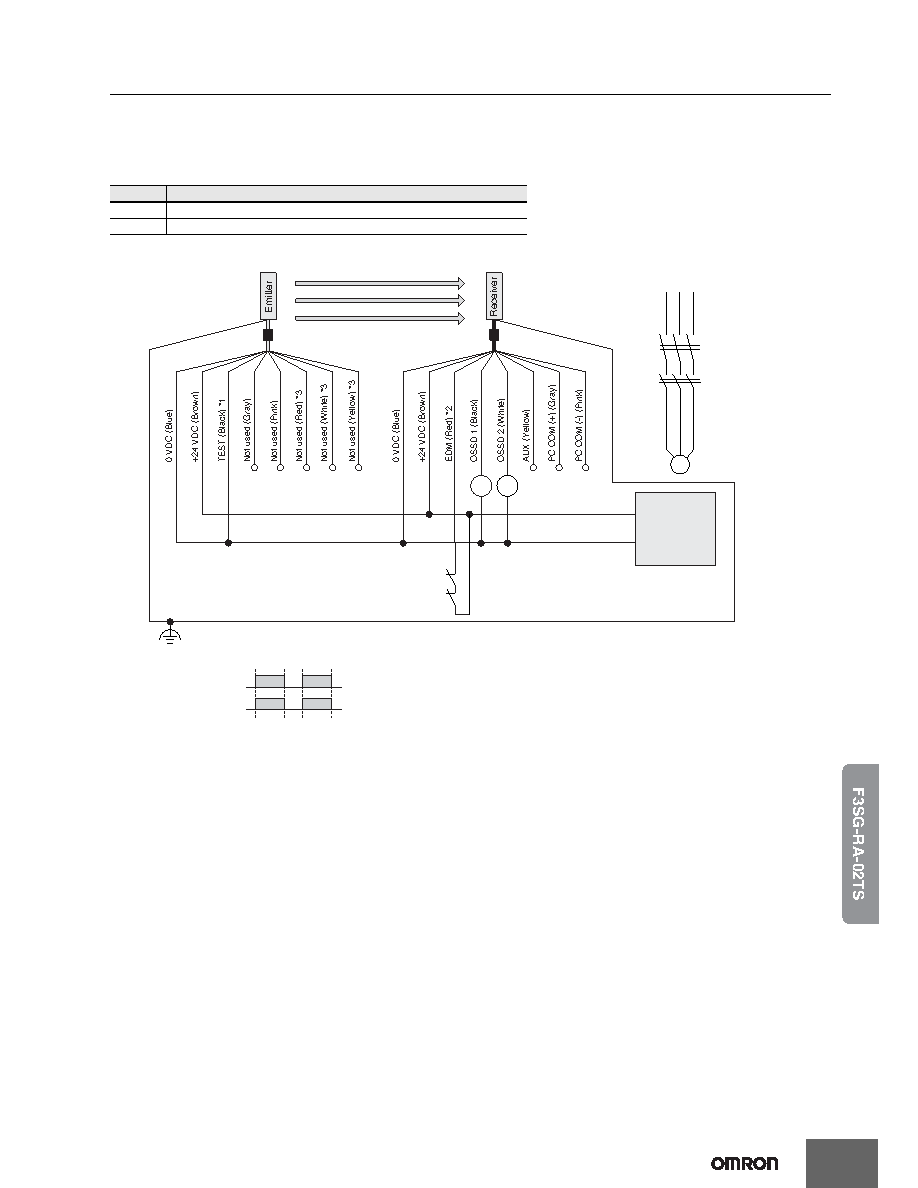

Wiring Example

Note: Functional earth connection is unnecessary when you use the F3SG-RA-02TS in a general industrial environment where noise

control or stable power supply is considered. However, when you use the F3SG-RA-02TS in an environment where there may

be excessive noise from surroundings or stable power supply may be interfered, it is recommended the F3SG-RA-02TS be

connected to functional earth.

The wiring examples in later examples do not indicate functional earth. To use functional earth, wire an earth cable

according to the example above. Refer to Safety Light Curtain F3SG-RA-02TS Series User's Manual for more information.

Function

Receiver

EDM

Emitter

External Test: 24 V Active (End Cap: Black) (factory default setting)

Unblocked

Blocked

Beam state

OSSD

KM1, KM2: Safety relay with forcibly guided contacts (G7SA)

M: Motor

Functional Earth

F39-JD

@@A-L *4

F39-JD

@@A-D *4

KM1

KM2

KM1 KM2

KM1

KM2

Power Supply

+24 VDC

0 VDC

*1.Connect the line to 24 V via a test switch (N.O. contact) if External Test is

used.

*2.Connect a lockout reset switch (N.C. contact) to this line in series with the

KM1 and KM2 if Lockout Reset is used.

*3.The F39-JD

@RA-L Single-Ended Cable for Emitter (Oil-Resistant Cable)

does not have the red, white and yellow wires.

*4.For the F39-JD

@A-@ Single-Ended Cable, connect the shield line to 0 V.
