F3SG-R Arkusz danych(PDF) 136 Page - Omron Electronics LLC

Numer części F3SG-R
Szczegółowy opis  Safety Light Curtain
PDF  164 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Producent  OMRON [Omron Electronics LLC]
Strona internetowa  http://www.omron.com/index3.html
Logo OMRON - Omron Electronics LLC

F3SG-R Arkusz danych(HTML) 136 Page - Omron Electronics LLC

Back Button F3SG-R Datasheet HTML 132Page - Omron Electronics LLC F3SG-R Datasheet HTML 133Page - Omron Electronics LLC F3SG-R Datasheet HTML 134Page - Omron Electronics LLC F3SG-R Datasheet HTML 135Page - Omron Electronics LLC F3SG-R Datasheet HTML 136Page - Omron Electronics LLC F3SG-R Datasheet HTML 137Page - Omron Electronics LLC F3SG-R Datasheet HTML 138Page - Omron Electronics LLC F3SG-R Datasheet HTML 139Page - Omron Electronics LLC F3SG-R Datasheet HTML 140Page - Omron Electronics LLC Next Button
Zoom Inzoom in Zoom Outzoom out
 136 / 164 page
background image

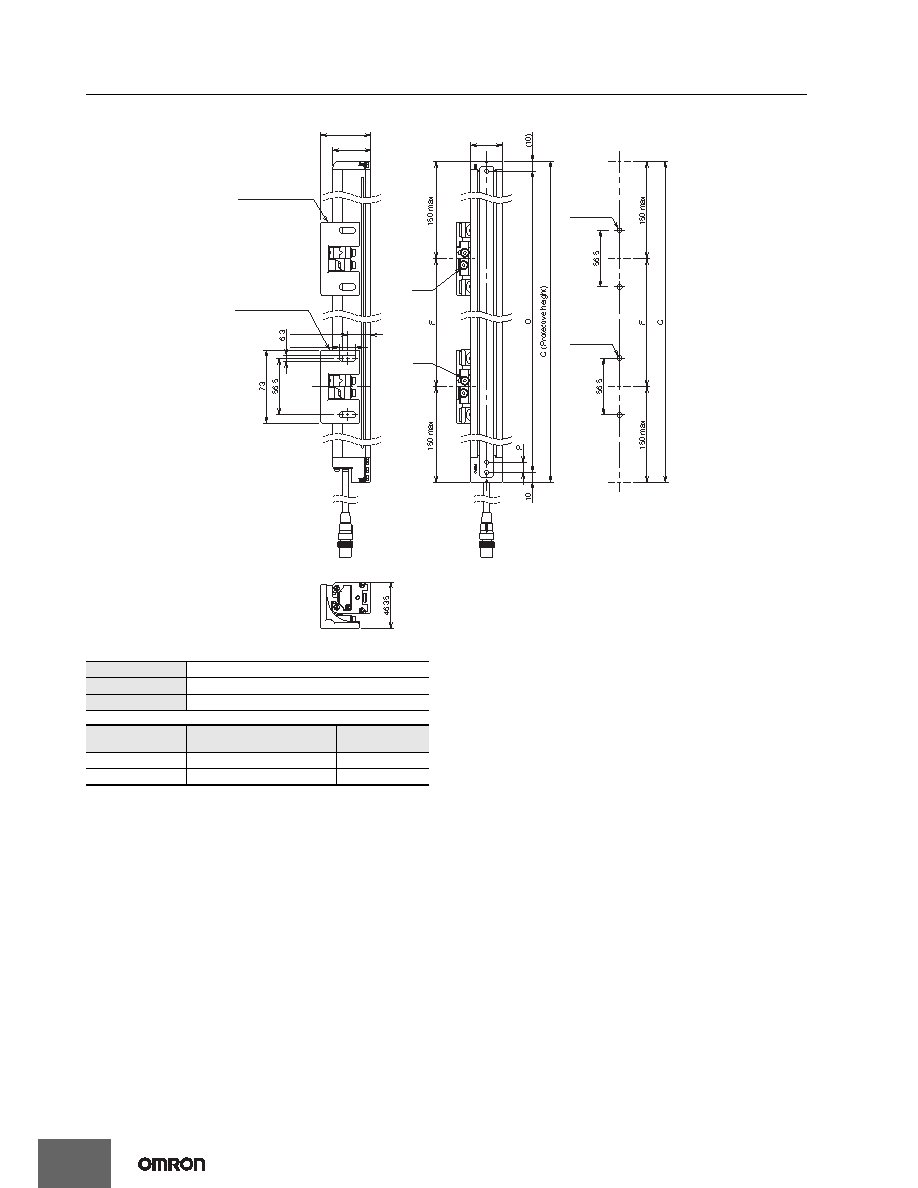

F3SG-RA-02TS
136
Side Mounting
F3SG-4RA-
@@@@-25-02TS Series
*1. The number of brackets required to mount either one of emitter and receiver.
*2. Mounting an emitter or receiver with one bracket is possible for the model of protective height of 0240. In this case, locate this
bracket at half the Dimension C (or at the center of the sensor length).
Dimension C
4-digit number of the type name (Protective height)
Dimension D
C-20
Dimension P
20
Protective height
(C)
Number of Free-Location
Brackets *1
Dimension F
0240 to 1200
2 *2
1000 mm max.
1280 to 1920
3
1000 mm max.
31.4
2-M4
2-M4
38
50
16.3
23.5
(F39-LGRA)
(F39-LGRA)
2-M5 or M6
2-M5 or M6
Free-Location Bracket
Free-Location Bracket
<Screw: M5 or M6>
