F3SG-RA-01TS
109

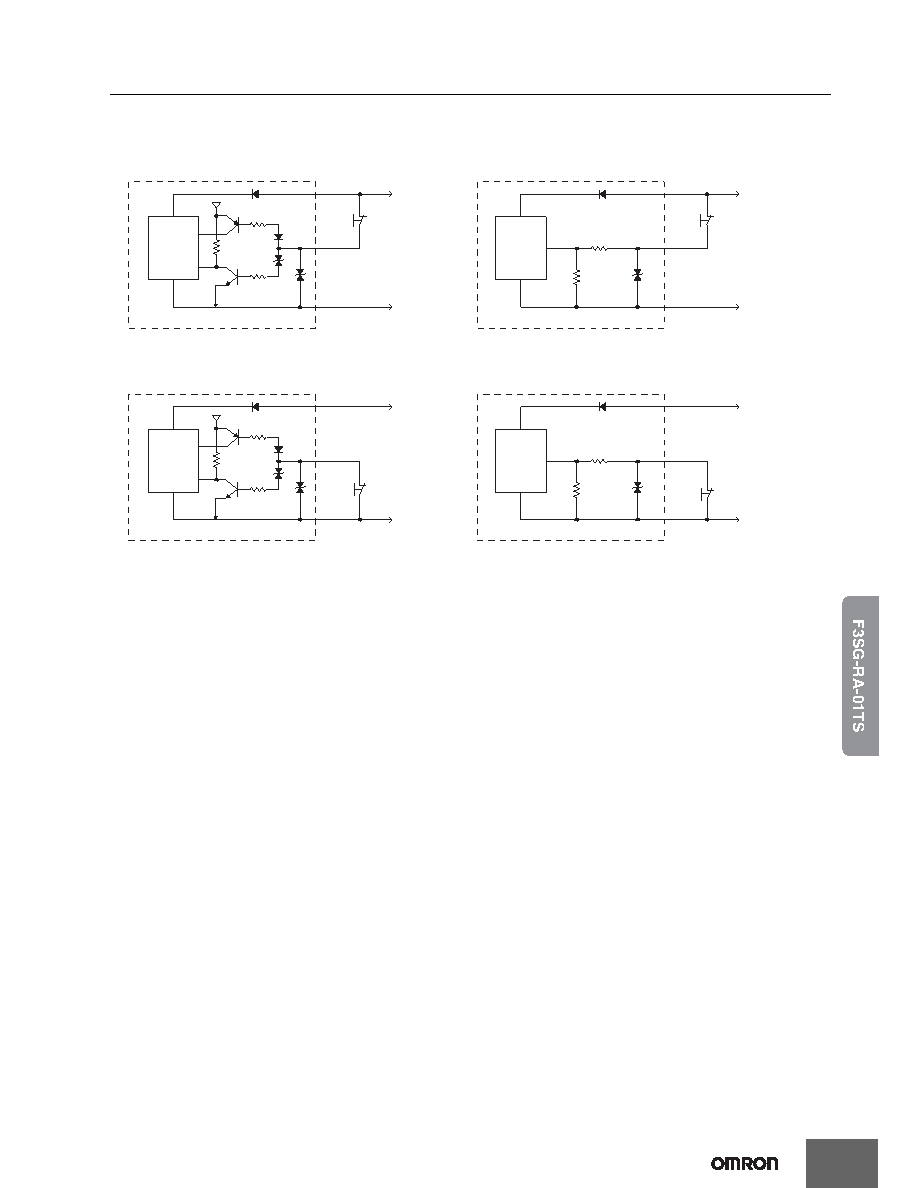

Input Circuit Diagram by Function
The input circuit diagrams of by function are shown below.
Emitter
Main
Circuit
+24 VDC
0 VDC
5 V
Short circuit current:
Approximately 3 mA
<Input circuit (Test input)>
Receiver
Main
Circuit
+24 VDC
0 VDC
Short circuit current:
Approximately 6.5 mA
<Input circuit (EDM input)>
24V Inactive
PNP Output
Receiver
Main
Circuit
+24 VDC
0 VDC
Short circuit current:
Approximately 8 mA
<Input circuit (EDM input)>
Emitter
Main
Circuit
+24 VDC
0 VDC
5 V
Short circuit current:
Approximately 2.0 mA
<Input circuit (Test input)>
*Short circuit current: 5mA (Reset input), 3mA (Muting inputs A/B)
0V Inactive
NPN Output
