F3SG-RA-01TS

105

Standalone F3SG-RA-01TS using NPN Outputs

EDM enabled, External Test 0V Inactive and NPN Outputs

The following is the example of External Device Monitoring enabled, NPN outputs and External Test in 0 V Inactive.

DIP Switch settings *1

: Indicates a switch position.

Configure functions with the DIP Switches before wiring.

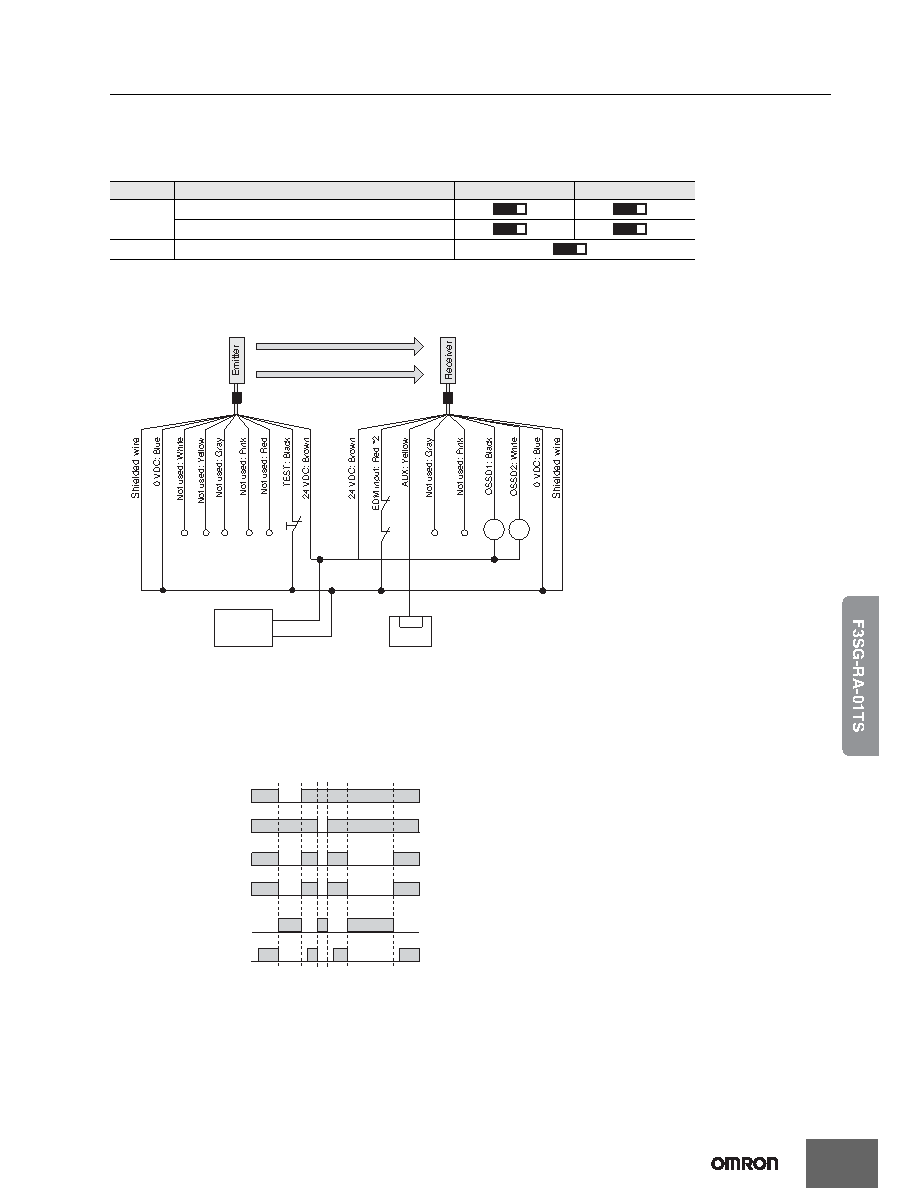

Wiring Example

Note: For the functional earth connection, refer to page 104.

Function

DIP-SW1

DIP-SW2

Receiver

EDM Enabled

NPN

Emitter

External Test: 0 V Inactive

2ON

7ON

4ON

KM1 KM2

PLC

+DC24V

KM1

KM2

PLC input

Unblocked

Blocked

External Test Switch(S1)

OSSD

KM1, KM2 NO contact

PLC output

Lockout

State

S1: External test switch(connect to 0V if a switch is not required)

KM1, KM2: Safety relay with forcibly guided contacts (G7SA) or magnetic contactor

E1: 24VDC power supply (S8VS)

PLC: Programmable controller (Used for monitoring -- not related to safety system)

F39-JD

@A-L

F39-JD

@A-D

*1.The functions are configurable with DIP Switch. Refer to Safety Light Curtain F3SG-4RA

@@@@-25-01TS Series User's Manual for

more information on setting the functions by the DIP Switch.

*2.Also used for the lockout reset input. When using the lockout reset function connect to 0V via lockout reset switch (N.C. contact).
