F3SG-RA-01TS

104

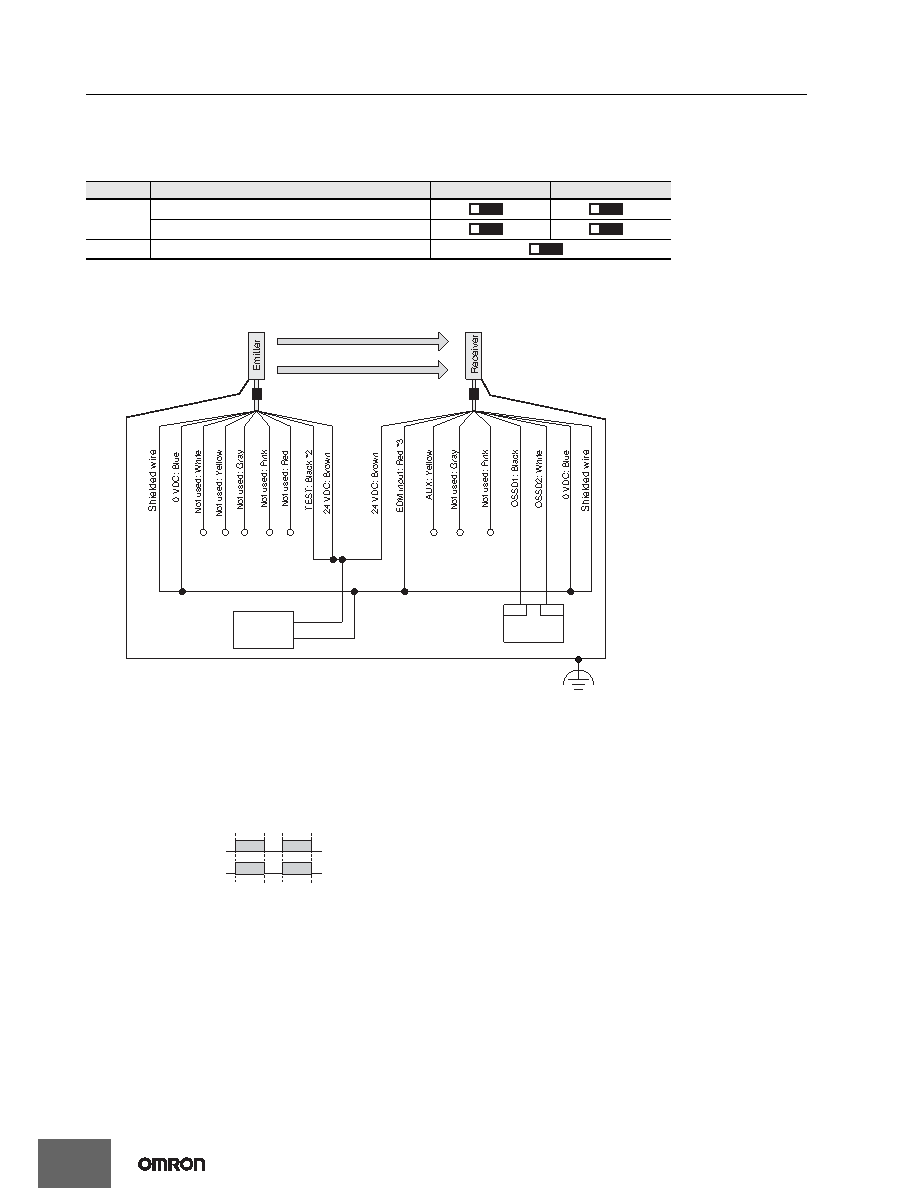

Connections (Basic Wiring Diagram)

Standalone F3SG-RA-01TS using PNP Outputs

EDM disabled, External Test unused and PNP Outputs

The following is the example of EDM disabled, PNP outputs and External Test unused.

DIP Switch settings *1

: Indicates a switch position.

Configure functions with the DIP Switches before wiring.

Wiring Example

Note: Functional earth connection is unnecessary when you use the F3SG-RA-01TS in a general industrial environment where noise control or

stable power supply is considered. However, when you use the F3SG-RA-01TS in an environment where there may be excessive noise

from surroundings or stable power supply may be interfered, it is recommended the F3SG-RA-01TS be connected to functional earth.

The wiring examples in later examples do not indicate functional earth. To use functional earth, wire an earth cable according to the example

above. Refer to Safety Light Curtain F3SG-4RA

@@@@-25-01TS Series User's Manual for more information.

Function

DIP-SW1

DIP-SW2

Receiver

EDM Disabled (factory default setting)

PNP (factory default setting)

Emitter

External Test: 24 V Inactive (factory default setting)

2ON

7ON

4ON

E1: 24VDC power supply (S8VS)

IN1IN2

+DC24V

Safety

Controller *4 *5

F39-JD

@A-L

F39-JD

@A-D

OSSD

Unblocked

Blocked

Functional Earth

*1.The functions are configurable with DIP Switch. Refer to Safety Light Curtain F3SG-4RA

@@@@-25-01TS Series User's Manual for more

information on setting the functions by the DIP Switch.

*2.When the external test function is used, connect to 24V via the test switch (N.C. contact).

*3.Also used for the lockout reset input. When using the lockout reset function, connect to 24V via lockout reset switch (N.C. contact).

*4.Refer to page 106 for more information.

*5.The safety controller and the F3SG-RA-01TS must share the power supply or be connected to the common terminal of the power supply.
