F3W-MA
157

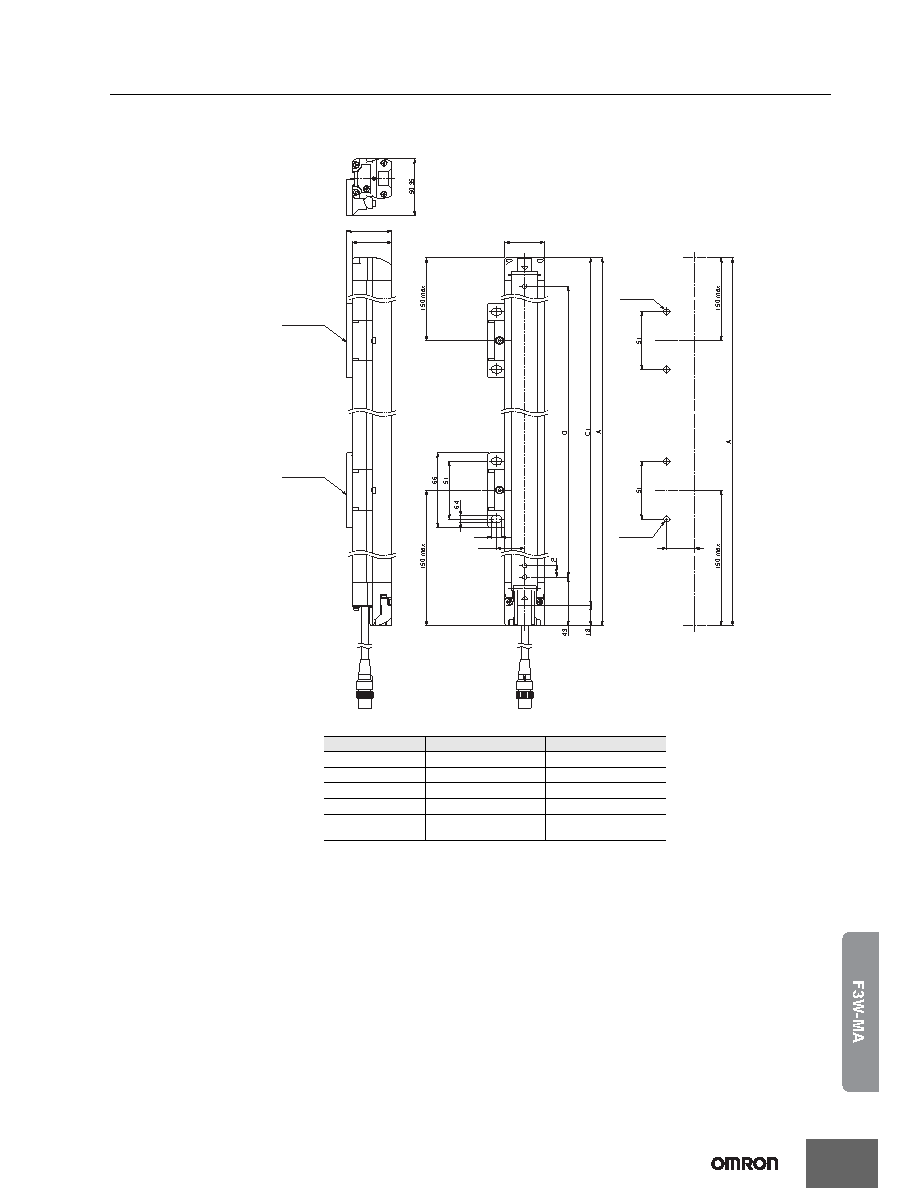

Mounted with Standard Fixed Brackets (F39-LGF)
Backside Mounting
2-M5 or M6
2-M5 or M6
35
9.2
Standard
Fixed Bracket
(F39-LGF)
Standard
Fixed Bracket
(F39-LGF)
35
40
24.85
24.85
< Screw: M5 or M6 >
*1. The number of brackets required to mount either one of emitter and receiver.
*2. Mounting an emitter or receiver with one bracket is possible. In this case, locate
this bracket at half the Dimension A (or at the center of the sensor length).
Model
F3W-MA0100P
F3W-MA0300P
Dimension A
208
448
Dimension C1
190
430
Dimension D
140
380
Dimension P
20
20
Number of Standard
Fixed Brackets *1
2 *2
2



Html Pages
