F3W-MA
159

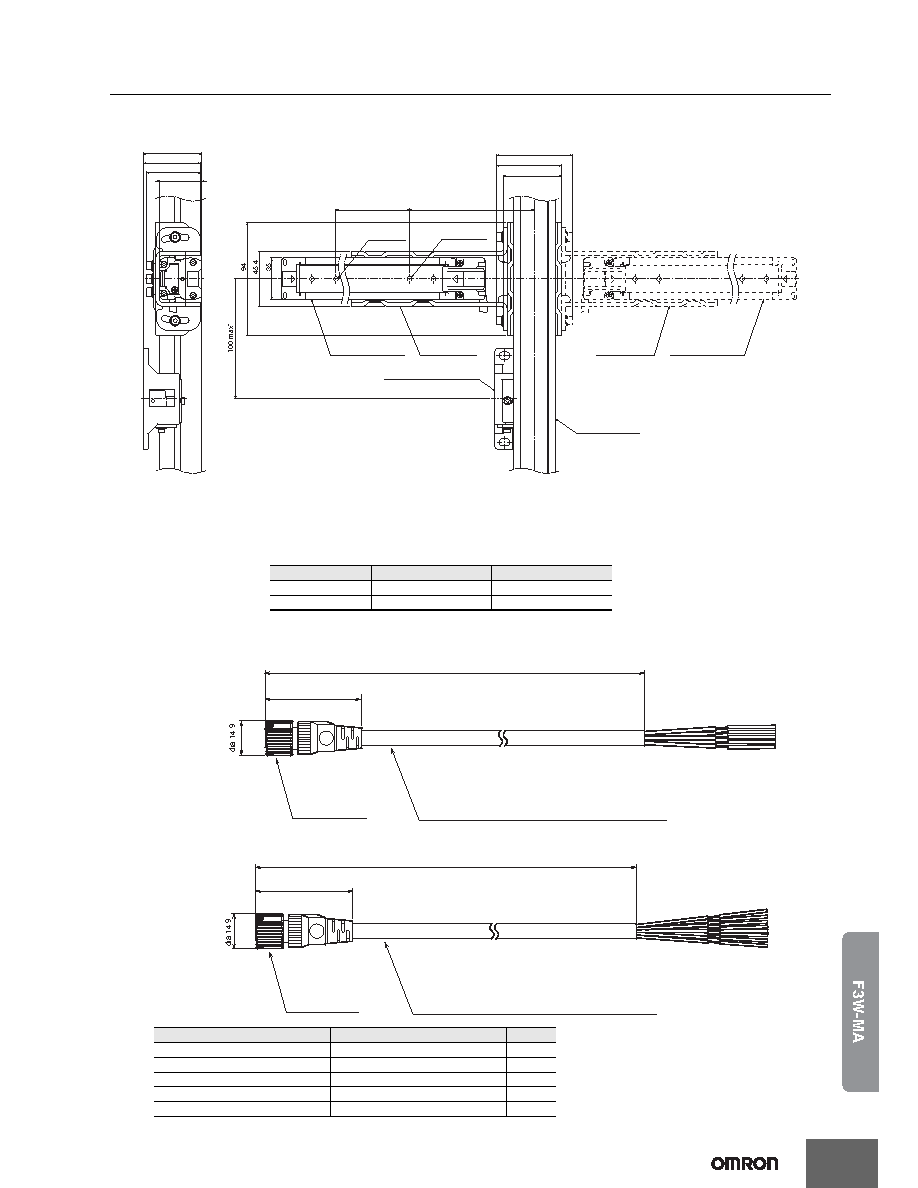

Mounted with F3W-MA Bracket (F39-LGMA
@) and Standard Adjustable Bracket (F39-LGA) on F3SG-RA
Accessories
Single-Ended Cable for Emitter (F39-JGA-L, sold separately)
Single-Ended Cable for Receiver (F39-JGA-D, sold separately)
Emitter cable (Gray)
Receiver cable (Black)
L (m)
F39-JG3A-L
F39-JG3A-D
3
F39-JG7A-L
F39-JG7A-D
7
F39-JG10A-L
F39-JG10A-D
10
F39-JG15A-L
F39-JG15A-D
15
F39-JG20A-L
F39-JG20A-D
20
Standard Adjustable Bracket*
(F39-LGA)
Smart Muting Actuator
(F3W-MA Series)
Smart Muting Actuator
(F3W-MA Series)
Safety Light Curtain
(F3SG-RA Series)
F3W-MA Bracket
(F39-LGMAT)
F3W-MA Bracket
(F39-LGMAL/T)
L-shaped configuration
T-shaped configuration (dashed line)
Muting Trigger
Beam
Muting Trigger
Beam
(54.3)
(63.2)
48.6
48.6
35
M3
M2
(47.6)
(44.9)
Note: When mounting an F3W-MA0300P in the L-shaped configuration, the shock resistance becomes as follows.
Shock resistance: 50 m/s2, 1000 shocks for all 3 axes
For mounting an F3W-MA0300P under a shock environment exceeding this, the F3W-MA Bracket cannot be used. Use a Standard
Adjustable Bracket (F39-LGA).
* The distance between the centers of the F3W-MA and the Standard Adjustable Bracket (F39-LGA) must be 100 mm or less. When the distance
is longer than 100 mm, add an extra Standard Adjustable Bracket for reinforcement.
Model
F3W-MA0100P
F3W-MA0300P
Dimension M2
100
300
Dimension M3
104
124
40.7
L
Insulated vinyl round cable dia. 6.6, 5-wire
(Cross section of conductor: 0.38 mm2/insulator diameter: dia. 1.2 mm)
M12 IP67 connector
Insulated vinyl round cable dia. 6.6, 8-wire
(Cross section of conductor: 0.38 mm2/insulator diameter: dia. 1.2 mm)
M12 IP67 connector
L
40.7
