F3W-MA

160

Double-Ended Cable for Emitter: Cable for extension (F39-JGB-L, sold separately)

Double-Ended Cable for Receiver: Cable for extension (F39-JG

@B-D, sold separately)

4-Joint Plug/Socket Connector for Emitter (F39-GCN4-L, sold separately)

4-Joint Plug/Socket Connector for Receiver (F39-GCN4-D, sold separately)

Related Manuals

Emitter cable (Gray)

Receiver cable (Black)

L (m)

F39-JGR5B-L

F39-JGR15B-D

0.5

F39-JG1B-L

F39-JG1B-D

F39-JG3B-L

F39-JG3B-D

F39-JG5B-L

F39-JG5B-D

F39-JG7B-L

F39-JG7B-D

F39-JG10B-L

F39-JG10B-D

F39-JG15B-L

F39-JG15B-D

F39-JG20B-L

F39-JG20B-D

ManNo.

Model

Manual name

Z355

F3W-MA

Smart Muting Actuator F3W-MA Series User's Manual

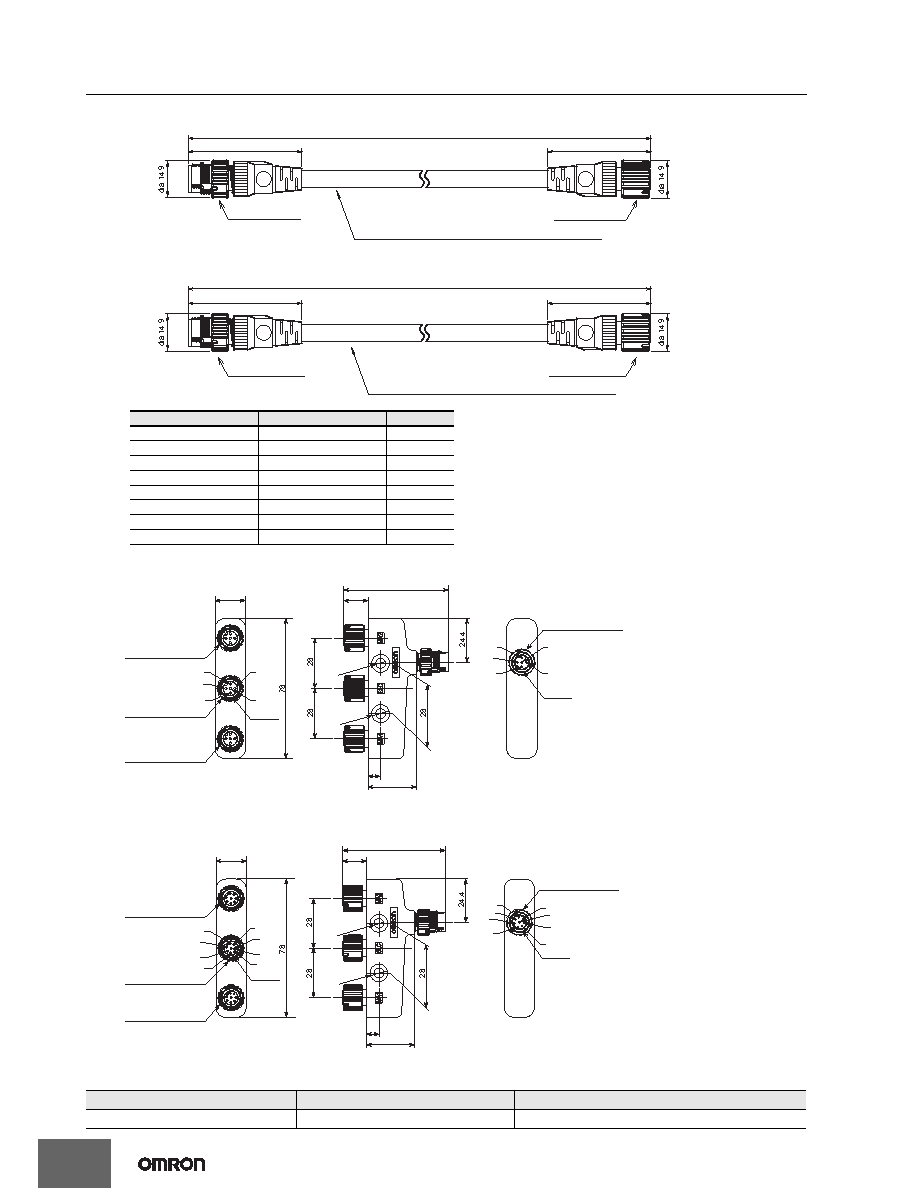

M12 IP67 connector

Insulated vinyl round cable dia. 6.6, 5-wire (2-pair + 1)

(Cross section of conductor: 0.38 mm2/insulator diameter: dia. 1.2 mm)

M12 IP67 connector

40.7

44.7

M12 IP67 connector

Insulated vinyl round cable dia. 6.6, 8-wire (4-pair)

(Cross section of conductor: 0.38 mm2/insulator diameter: dia. 1.2 mm)

M12 IP67 connector

40.7

44.7

M12 x 1

M12 IP67 connector, 5-wire

M12 x 1

58.3

13.6

MA2

SLC

MA1

2-dia.

5.5

2-dia.10

Material: PBT (Main body)

M12 x 1

58.3

13.6

MA2

SLC

MA1

2-dia.

5.5

2-dia.10

M12 IP67 connector, 8-wire

Material: PBT (Main body)
