F3W-MA

149

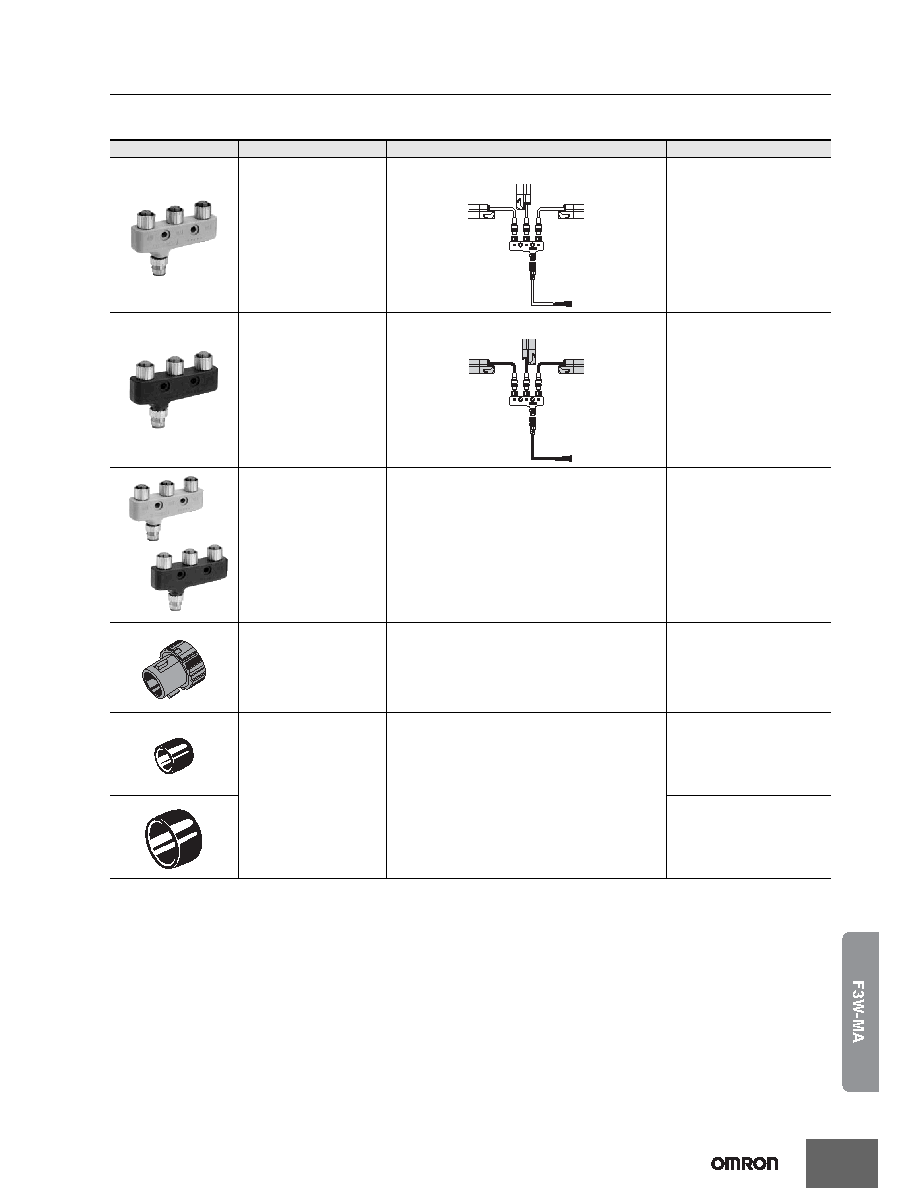

4-Joint Plug/Socket Connector

Used for reduced wiring for connecting F3W-MA with F3SG-RA.

Appearance

Type

Specifications

Model

For emitter

M12 connectors.

Used for reduced wiring.

F39-GCN4-L

For receiver (PNP output)

M12 connectors.

Used for reduced wiring.

F39-GCN4-D

Includes one each of

F39-GCN4-L and

F39-GCN4-D

−

F39-GCN4

Water-resistive Cover for

4-Joint Plug/Socket

Connector

One water-resistive cover for an F39-GCN4-L/-D

4-Joint Plug/Socket Connector. You can use this when

the MA2 connector part is not used.

Material: PBT. IP67 rated when attached. Smartclick

mechanism.

XS5Z-11

Dust Cover for 4-Joint

Plug/Socket Connector

One dust cover for an F39-GCN4-L/-D 4-Joint Plug/

Socket Connector. You can use this when the MA2

connector part is not used.

Material: Rubber/black. This cover does not ensure

IP67 degree of protection.

XS2Z-14: Attach to a pin block inside the M12 female

screw.

XS2Z-15: Attach to a M12 female screw. When

attaching the cover to the connector, press the cover

onto the connector until the connector is fully inserted

into the cover.

XS2Z-14

XS2Z-15

Single-Ended Cable

F39-JG

@A-L (Gray)

4-Joint Plug/

Socket Connector

F39-GCN4-L

F3SG-RA

Emitter

F3W-MA Emitter

(Secondary)

F3W-MA Emitter

(Primary)

Single-Ended Cable

F39-JG

@A-D (Black)

4-Joint Plug/

Socket Connector

F39-GCN4-D

F3W-MA Receiver

(Secondary)

F3W-MA Receiver

(Primary)

F3SG-RA

Receiver
