F3W-MA

150

Sensor Mounting Brackets

Note: When mounting an F3W-MA0300P in the L-shaped configuration, the shock resistance becomes as follows.

Shock resistance: 50 m/s2, 1000 shocks for all 3 axes

For mounting an F3W-MA0300P under a shock environment exceeding this, the F3W-MA Bracket cannot be used. Use a Standard

Adjustable Bracket (F39-LGA).

* When using F39-LGMA

@, there are some restrictions on the brackets to mount the F3SG-RA. This bracket is not usable together with F39-LGF.

When using together with the F39-LGA, the protective height of the F3SG-RA must be 270 mm or longer. When using together with F39-LGTB,

the protective height of the F3SG-RA must be 400 mm or longer. An extra F39-LGA is required for reinforcement, depending on the mounting

position of the F39-LGMA

@. Refer to "Dimensions" on page 159 for details.

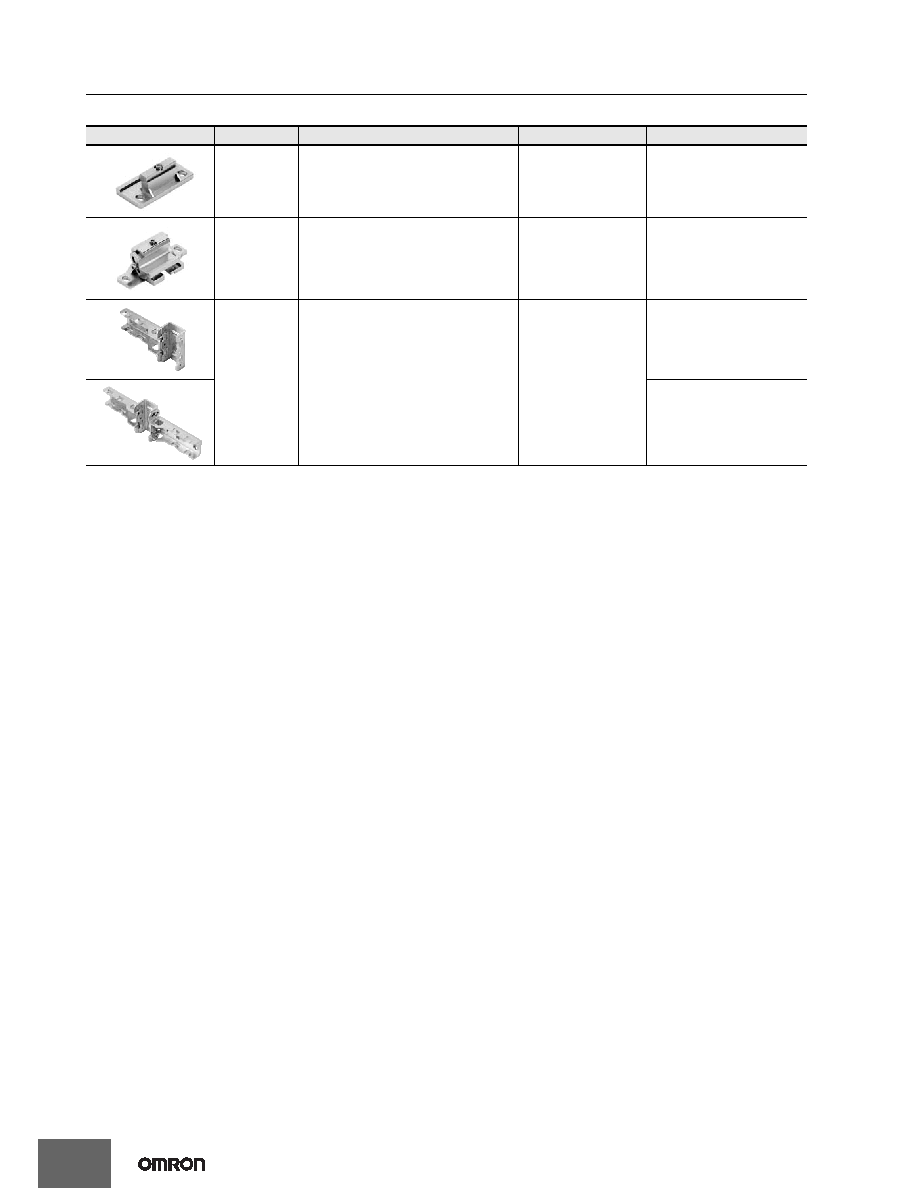

Appearance

Specification

Application

Remarks

Model

Standard

Fixed Bracket

Bracket to mount the F3W-MA.

Side mounting and backside mounting

possible.

Two brackets per set

F39-LGF

Standard

Adjustable

Bracket

Bracket to mount the F3W-MA.

Beam alignment after mounting

possible.The angle adjustment range is

±15°.

Side mounting and backside mounting

possible.

Two brackets per set

F39-LGA

F3W-MA

Bracket

Bracket to fix the F3W-MA to the F3SG-

RA.

F39-LGMAL: L-shaped configuration

F39-LGMAT: T-shaped configuration

Beam alignment after mounting possible.

When using the F3W-MA Bracket, it is nec-

essary to add an extra Standard Adjust-

able Bracket (F39-LGA) to the F3SG-RA. *

Please also purchase Standard Adjustable

Bracket (F39-LGA).

Two brackets per set

F39-LGMAL

F39-LGMAT
